Instruction Manual — 3-in-1 Foldable Qi2 Wireless Charging Stand

This manual covers setup and features for the Satechi 3-in-1 Foldable Qi2 Wireless Charging Stand (Model: ST-Q31FM-EA).

📄 Download User Manual — 3-in-1 Foldable Qi2 Wireless Charging Stand · PDF · 2.5 MB

In the Box

3-in-1 Foldable Qi2 Wireless Charging Stand, Power Adapter (with interchangeable plugs: USA/Canada/Japan, EU, UK/Ireland), USB-C Cable, User Manual.

Specifications

Model: ST-Q31FM-EA
Dimensions: 3.5" × 3.5" × 6.22" (9 × 9 × 15.8 cm)
Weight: 10.5 oz / 303.5 g
Minimum Input Power Required: 36W (use included power adapter and cable)

Charging Speeds:
Qi2 Magnetic Wireless Charger (Phone) — up to 15W (Qi2 & MagSafe compatible phones only)
Apple Watch Charger — up to 5W fast charging (Apple Watch Series 7, 8, 9, Ultra, Ultra 2 only)
AirPods Wireless Charger — up to 5W

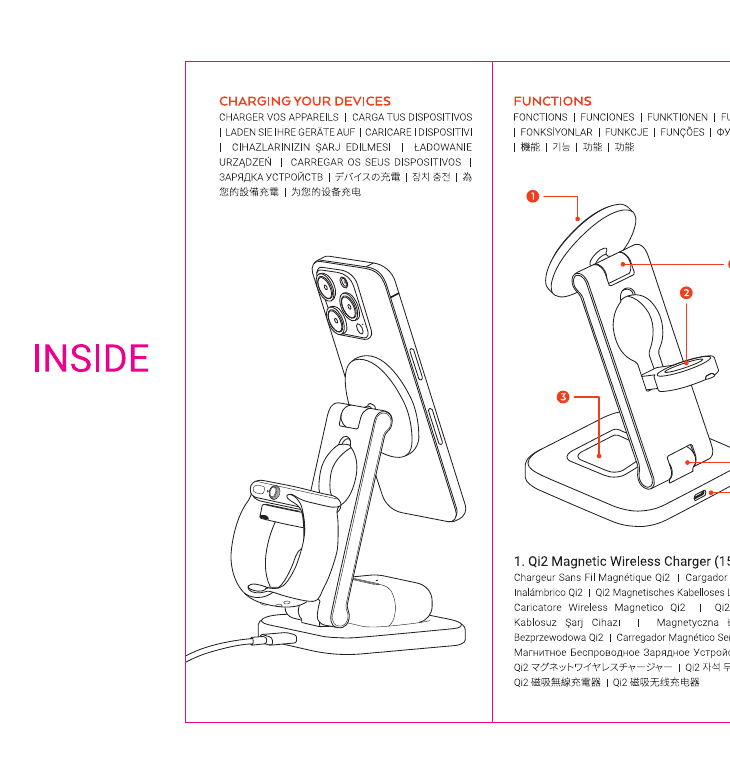

Parts Reference

1. Qi2 Magnetic Wireless Charger (15W Max) — The main phone charging pad using Qi2 magnetic wireless technology. Charges Qi2 and MagSafe compatible smartphones at up to 15W. The stand position allows landscape or portrait orientation for your phone.
2. Foldable Apple Watch Charger (5W) (Fast-Charging*) — Built-in foldable Apple Watch magnetic charger. Charges Apple Watch at up to 5W. Fast charging (5W) is only supported on Apple Watch Series 7, 8, 9, Ultra, and Ultra 2.
3. Wireless Charger for AirPods (5W Max) — Wireless charging pad for AirPods (Pro or standard with wireless charging case). Charges at up to 5W.
4. USB-C Port — USB-C input port. Connect the included power adapter and USB-C cable here to power the charger.
5. Adjustable Folding Hinges — The hinges allow the stand to fold flat for travel and adjust to your preferred viewing angle when in use.

Setup

The 3-in-1 Foldable Qi2 Wireless Charging Stand is plug-and-play — no drivers required.

Step 1: Attach the appropriate plug adapter to the included power adapter (USA/Canada/Japan, EU, or UK/Ireland).
Step 2: Connect the included USB-C cable to the USB-C port (Port 4) on the charger base.
Step 3: Connect the other end of the USB-C cable to the power adapter and plug into a wall outlet.
Step 4: Unfold the stand to your preferred angle using the adjustable hinges.
Step 5: Place your iPhone or MagSafe-compatible phone on the Qi2 charging pad (Port 1).
Step 6: Place your Apple Watch on the foldable Apple Watch charger (Port 2).
Step 7: Place your AirPods (with wireless charging case) on the AirPods pad (Port 3).

Changing the Plug Adapter

Step 1: Fold the default US plug flat so that the outlet connectors face upward.
Step 2: Align the international adapter with the US plug and snap it into place. The adapter should sit flush with the top of the power adapter.
Step 3: To remove the adapter, push upward until the adapter snaps off.

Important Notes

Use the included power adapter and cable for optimal functionality: A minimum input power of 36W is required. Always use the included power adapter and USB-C cable. Using a lower-wattage adapter will reduce charging performance across all three pads.

15W charging requires a Qi2 or MagSafe compatible phone: Only Qi2 and MagSafe-compatible smartphones will charge at up to 15W. Standard Qi phones will charge at lower speeds.

Apple Watch fast charging (5W) is only supported on Series 7 and later: Fast charging at 5W is available on Apple Watch Series 7, Series 8, Series 9, Ultra, and Ultra 2. Earlier Apple Watch models charge at standard speed.

Compatible with phone cases supporting MagSafe or magnetic attachment: Most standard MagSafe-compatible phone cases will work. Very thick cases may reduce charging efficiency.

Keep away from water or other liquids.

Frequently Asked Questions

What is the maximum wireless charging speed for my iPhone?
Qi2 and MagSafe compatible iPhones charge at up to 15W on the main charging pad (Port 1). Standard Qi phones charge at lower speeds.

Which Apple Watch models support fast charging?
Fast charging at 5W is supported on Apple Watch Series 7, Series 8, Series 9, Ultra, and Ultra 2. Earlier models charge at standard speed.

Can I charge all three devices at the same time?
Yes. All three charging positions (phone, Apple Watch, AirPods) can be used simultaneously when powered by the included 36W+ adapter.

Does this work with non-Apple phones?
Yes. Any Qi2-compatible Android phone will charge at up to 15W. Standard Qi phones will charge at reduced speeds.

Can I use a different power adapter?
For optimal performance, use the included power adapter. If using a third-party adapter, it must provide at least 36W via USB-C.

Safety Instructions

Warning: Fire, electric shock, or damage could occur if the following instructions are not obeyed.

1. Keep away from water, liquids, and moisture.
2. Do not expose to extreme heat or direct sunlight for extended periods.
3. Do not drop or subject to strong impacts.
4. Use only with the included power adapter or a compatible 36W+ USB-C adapter.
