This User Manual covers setup, features, compatibility, and specifications for the Satechi OntheGo™ Qi2 3-in-1 Wireless Charger (ST-QTG31K / ST-QTG31W / ST-QTG31R).
What's In The Box
OntheGo™ Qi2 3-in-1 Wireless Charger, USB-C Cable, User Manual. A 36W or higher USB-C power adapter is sold separately.
Product Overview
The OntheGo™ Qi2 3-in-1 Wireless Charger fans out into three charging pads from a single USB-C input: a Qi2 magnetic disc that delivers up to 15W to a compatible iPhone, a center pad for AirPods, and a foldable magnetic puck for an Apple Watch that flips up for Nightstand mode. Folded, it collapses to a flat shape that travels easily, so a three-device nightstand setup fits in a bag.
Setup
The OntheGo™ Qi2 3-in-1 Wireless Charger is plug-and-play. No drivers are required.

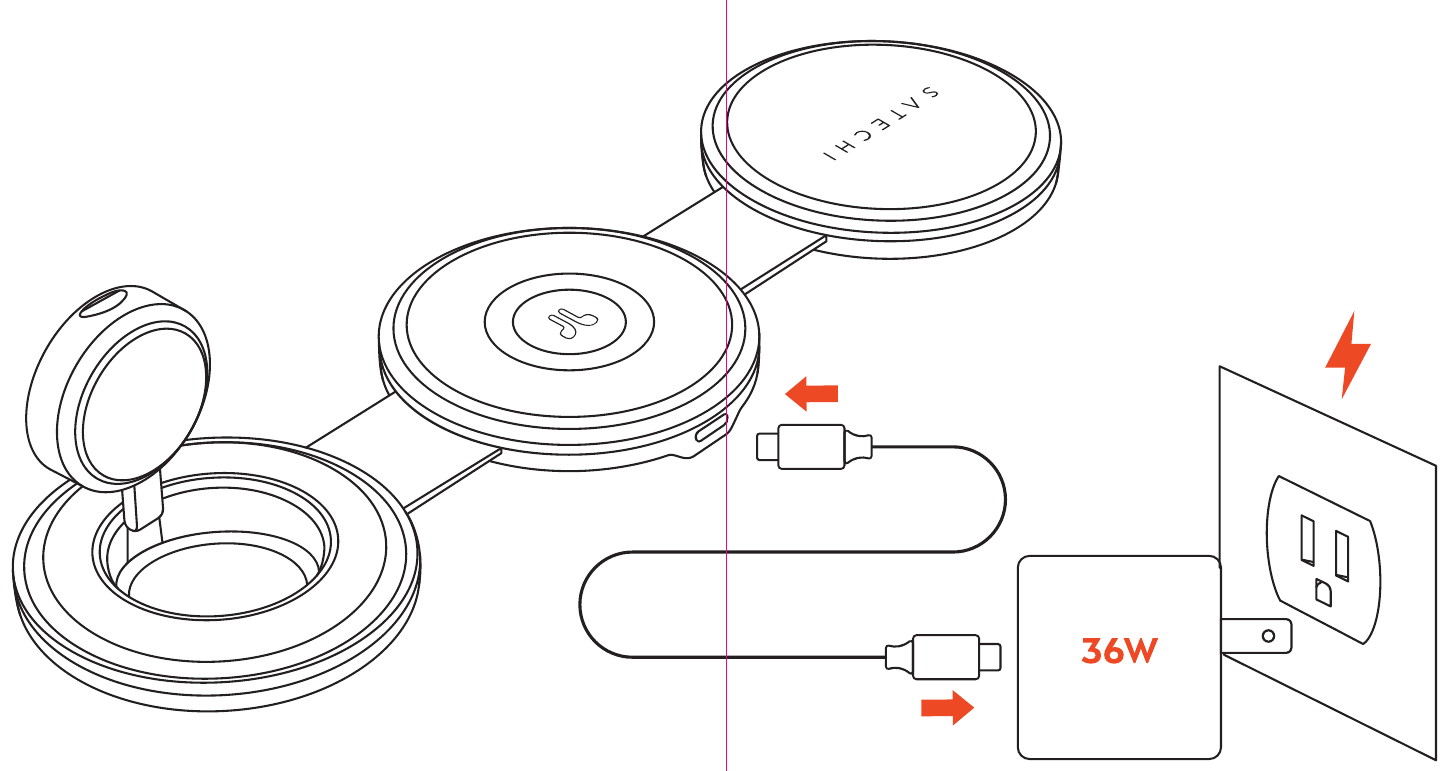

- Unfold the charger: Fan out all three charging pads.
- Connect the USB-C cable: Plug the included cable into the USB-C port at the rear of the charger.
- Connect the power adapter: Plug the other end into a 36W or higher USB-C power adapter, sold separately, then into a wall outlet. The LED briefly turns on, turns off, then flashes once to confirm power.
- Place your iPhone on the Qi2 disc: The magnets snap it into alignment and charging begins automatically.
- Place your AirPods on the center disc: The case must support wireless charging.
- Place your Apple Watch on the puck: Flip the puck upward to enable Nightstand mode.
Functions

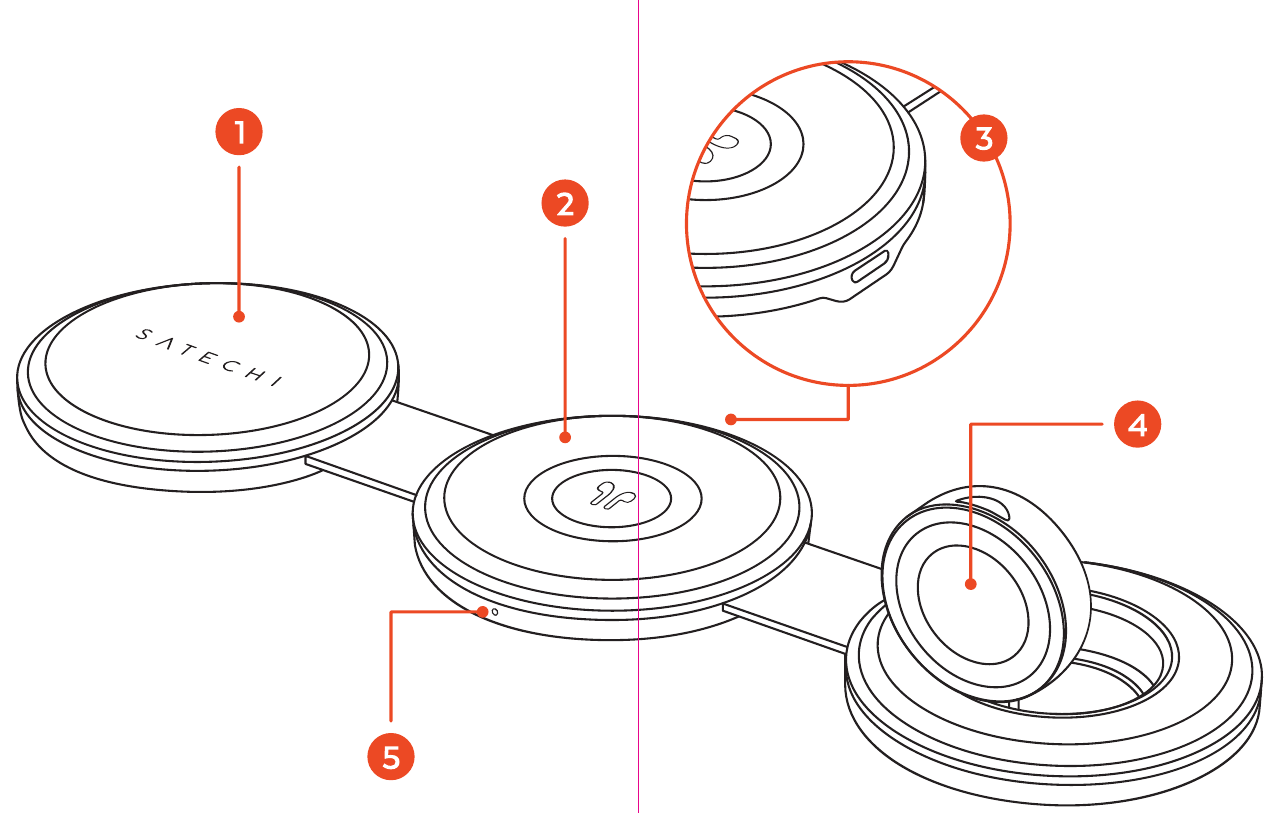

Parts labeled diagram of the OntheGo™ Qi2 3-in-1 Wireless Charger with 5 labeled components.
1. Qi2 Magnetic Wireless Charger (15W Max): The large left charging disc. Charges Qi2 and MagSafe compatible iPhones at up to 15W. Built-in magnets align the phone automatically. Non-MagSafe phones need a Qi2 or MagSafe compatible case or magnetic attachment, sold separately.
2. Wireless Charger for AirPods (5W Max): The center charging disc. Place AirPods with a wireless charging case here to charge at up to 5W. The LED indicator lights up while this pad is in use.
3. USB-C Port: Power input at the rear of the charger. Connect the included USB-C cable here, then plug the other end into a 36W or higher USB-C power adapter, sold separately.
4. Foldable Apple Watch Charger (5W) (Fast-Charging): The Apple Watch magnetic puck on the right side. Folds flat when not in use and flips up for Nightstand mode. Fast charging at 5W is supported on Apple Watch Series 7, 8, 9, and 10. Apple Watch Ultra and Ultra 2 charge at the standard 5W rate.
5. LED Indicator: At the front of the charger. Briefly turns on, turns off, then flashes once when the charger is connected to power. Stays lit while the AirPods pad is in use. Blinks to warn that a foreign object has been detected on a charging surface.
Features

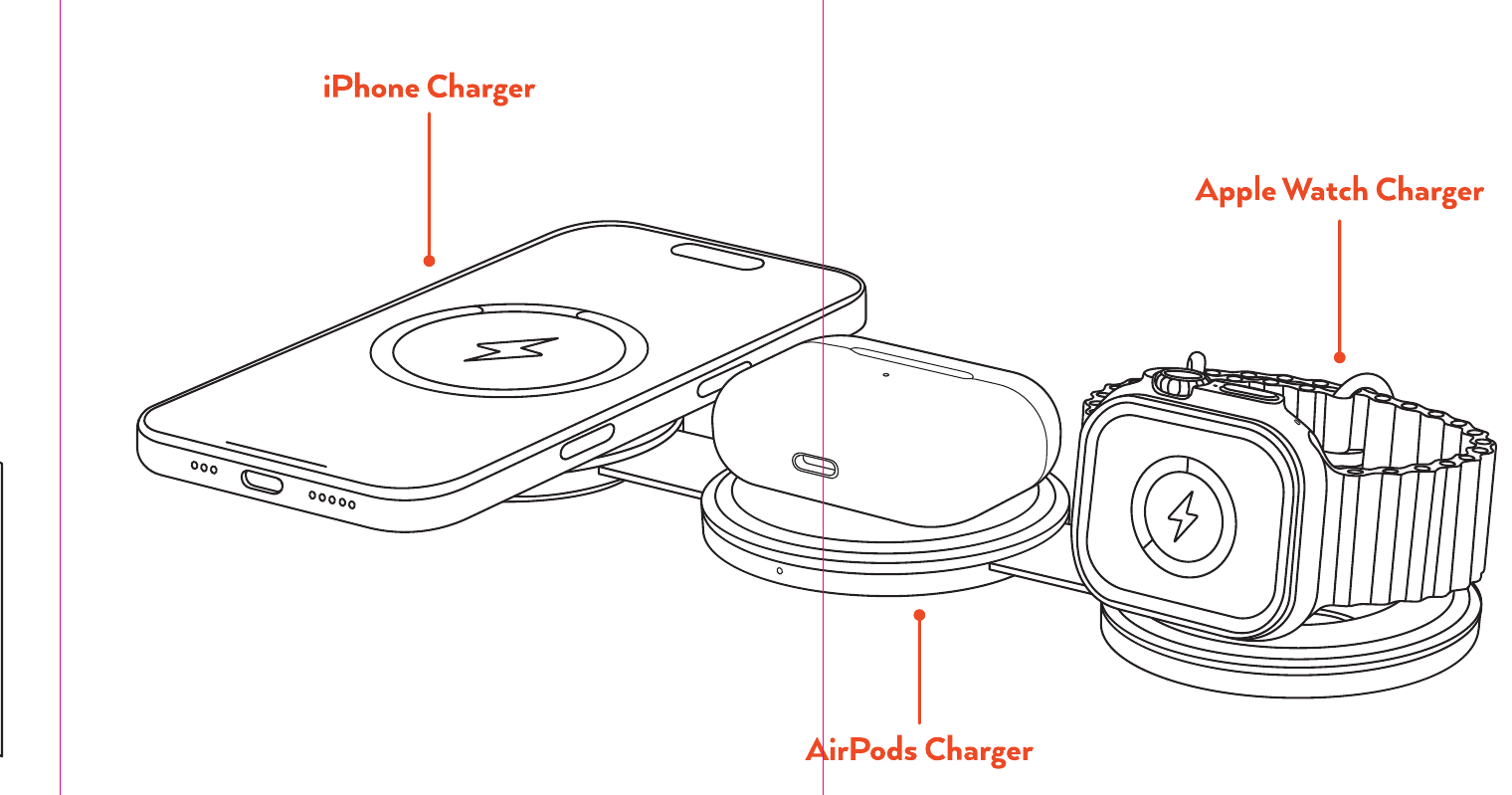

- Charges an iPhone, AirPods, and an Apple Watch at the same time
- Up to 15W of Qi2 wireless charging for the phone
- Apple Watch puck flips up for Nightstand mode

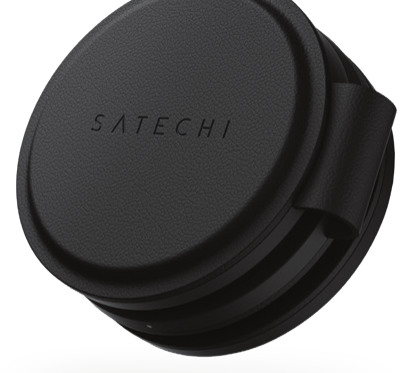

- Folds flat into a compact shape for travel
- Foreign Object Detection with an LED warning
- Single USB-C input powers all three pads
Important Limitations
A power adapter is not included, and 36W is the minimum: The USB-C power adapter must be purchased separately. A minimum of 36W is required for optimal charging performance across all three pads.
15W charging requires a Qi2 or MagSafe compatible phone: Only Qi2 and MagSafe compatible iPhones charge at up to 15W on the Qi2 disc. Standard Qi phones charge at lower speeds. Non-MagSafe phones need a Qi2 or MagSafe compatible case or magnetic attachment, not included, to use the magnetic alignment.
Apple Watch fast charging is only supported on Series 7 and later: Fast charging is supported on Apple Watch Series 7, 8, 9, and 10. Apple Watch Ultra and Ultra 2 charge at the standard 5W rate. Earlier models charge at standard speed.
The LED blinks if a foreign object is detected: If the LED blinks, remove any metallic or non-compatible objects from the Qi2 or AirPods charging surfaces and replace them with a compatible device.
Keep away from water and other liquids: Do not expose the charger to extreme heat or direct sunlight for extended periods, and do not drop it or subject it to strong impacts.
Remove metallic objects from the charging surfaces before use: Use the charger only with a compatible 36W or higher USB-C power adapter.
Specifications
Models: ST-QTG31K (Black), ST-QTG31W (Sand), ST-QTG31R (Desert Rose)
Dimensions (unfolded): 24.25 x 6.75 x 1.13 cm (9.55 x 2.66 x 0.44 inches)
Weight: 145.3 g (5.12 oz)
Cable Length: 100 cm (39.3 in)
Connector: USB-C
Minimum Input Power: 36W, power adapter sold separately
Charging Speeds:
1x Qi2 magnetic wireless charger: up to 15W, Qi2 and MagSafe compatible phones only
1x AirPods wireless charger: up to 5W
1x Apple Watch charger: fast charging up to 5W on Series 7, 8, 9, and 10, standard 5W on Ultra and Ultra 2
1x USB-C port: power input, 36W minimum
Certifications
FCC, IC, CE, WEEE, ETL
