Instruction Manual — OntheGo™ 7-in-1 Multiport Adapter

This manual covers setup and features for the Satechi OntheGo™ 7-in-1 Multiport Adapter (Model: ST-POTG7C).

📄 Download User Manual — OntheGo™ 7-in-1 Multiport Adapter · PDF · 2.3 MB

In the Box

OntheGo™ 7-in-1 Multiport Adapter, 3M Adhesive Ring, User Manual.

Specifications

Model: ST-POTG7C
Dimensions: 2.55" x 2.55" x 1.05" (90 x 130 mm body)
Weight: 2.36 oz / 66.9g
Host Cable: USB 3.2 Gen 2

Ports & Speeds:
1× HDMI 2.0 — up to 4K 60Hz
1× USB-C PD — up to 80W output (100W input max)
2× USB-A 3.2 Gen 1 — up to 5 Gbps
1× SD card reader — UHS-I, up to 104 MB/s, 2TB max
1× Micro SD card reader — UHS-I, up to 104 MB/s, 2TB max
1× Gigabit Ethernet — 10/100/1000 Mbps

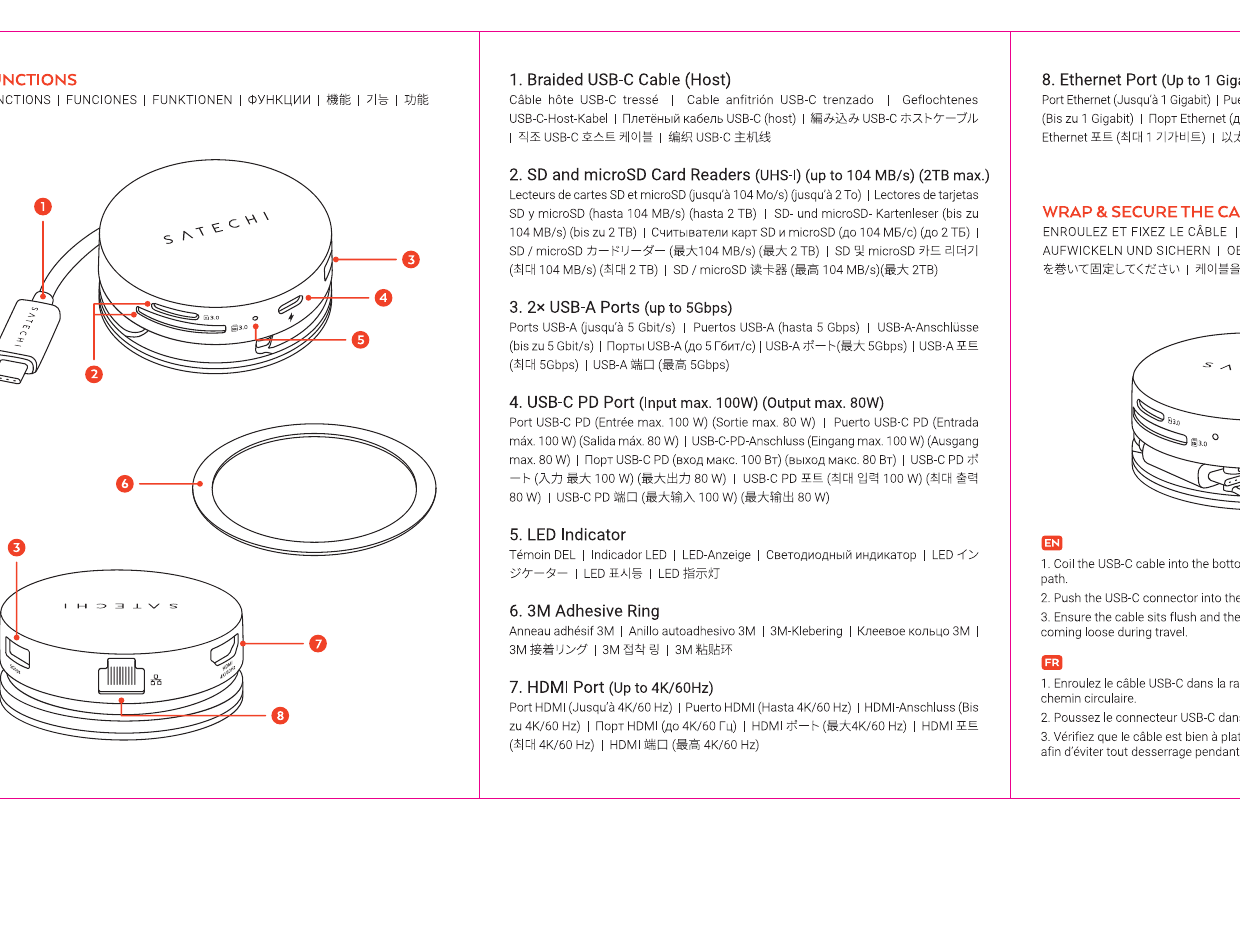

Parts Reference

1. Braided USB-C Cable (Host) — Built-in USB-C cable that connects the adapter to your device's USB-C port.
2. SD & Micro SD Card Readers — Dual card slots supporting UHS-I speeds up to 104 MB/s and cards up to 2TB. Insert SD cards with metal pins facing down.
3. 2× USB-A Ports (up to 5 Gbps) — Two USB-A 3.2 Gen 1 ports for data transfer up to 5 Gbps.
4. USB-C PD Port (Input max 100W / Output max 80W) — USB-C power delivery for charging. Does not support data transfer or video output.
5. LED Indicator — Lights up when the adapter is connected and powered.
6. 3M Adhesive Ring — Adhesive ring that attaches the adapter to the back of your device. Clean the surface before applying.
7. HDMI Port (up to 4K/60Hz) — HDMI 2.0 port supporting up to 4K at 60Hz.
8. Ethernet Port (up to 1 Gigabit) — Gigabit Ethernet (10/100/1000 Mbps) for wired network connectivity.

Setup

The OntheGo 7-in-1 Adapter is plug-and-play — no drivers required.

Step 1: Plug the built-in USB-C cable into a USB-C port on your device.
Step 2: Connect your devices to the adapter's ports.

Attaching the 3M Adhesive Ring (optional):
1. Clean the surface where you want to attach the adapter — it must be flat, smooth, and dry.
2. Remove the protective film from the 3M Adhesive Ring and press the adhesive firmly onto the adapter's base.
3. Remove the remaining protective film and press the adapter firmly onto your device.

Wrapping and securing the cable: Route the braided USB-C cable through the groove at the bottom of the adapter and press it firmly to keep it tidy during transport.

Important Notes

USB-C PD port does not support data transfer or video output: The USB-C PD pass-through port is for charging only.

Insert SD cards with metal pins facing down: Always insert SD or Micro SD cards with the metal contact pins facing downward into the slot.

Not compatible with CD readers or Apple USB SuperDrive: The adapter cannot power the Apple USB SuperDrive or other optical drives due to power requirements.

3M adhesive ring does not provide wireless charging: The adhesive ring is for physical mounting only.

Frequently Asked Questions

What is the maximum USB-C PD charging wattage?
The USB-C PD port accepts up to 100W input and provides up to 80W output to your device.

What is the maximum HDMI resolution?
The HDMI port supports up to 4K at 60Hz (HDMI 2.0).

Can I use both the SD and Micro SD slots simultaneously?
Check your host device specifications — both slots are present but simultaneous use depends on host device support.

Does the 3M adhesive ring work on textured surfaces?
The 3M adhesive ring works best on flat, smooth, clean surfaces. It is not recommended for rough or textured surfaces.

Safety Instructions

Warning: Keep away from water, liquids, and moisture. Do not expose to extreme heat or direct sunlight for extended periods.

1. Do not drop or subject the adapter to strong impacts.
2. Keep away from liquids and moisture.
3. Do not place near heat sources.

Need Help?

Contact Satechi Support at support.satechi.com or email support@satechi.com.
Phone: +1 858 268 1800 | Website: www.satechi.com
