Instruction Manual — OntheGo™ Foldable Stand Hub

This manual covers setup and features for the Satechi OntheGo™ Foldable Stand Hub (Model: ST-GOTGFC).

📄 Download User Manual — OntheGo™ Foldable Stand Hub · PDF · 1.6 MB

In the Box

OntheGo™ Foldable Stand Hub, User Manual.

Specifications

Model: ST-GOTGFC
Dimensions: 108 × 108 × 19 mm (4.3" × 4.3" × 0.75")
Host Cable Length: 17 cm / 6.69"
Weight: 187.5 g
Connector: USB-C

Ports & Speeds:
1× 3.5mm audio jack — input/output supported
1× USB-C PD — 100W max input, up to 85W output to host
1× HDMI — up to 4K 60Hz
1× USB-A — up to 10 Gbps
1× USB-C data — up to 10 Gbps
1× SD card reader — UHS-II, up to 312 MB/s
1× microSD card reader — UHS-II, up to 312 MB/s
1× USB-C host cable (stored in cable compartment)

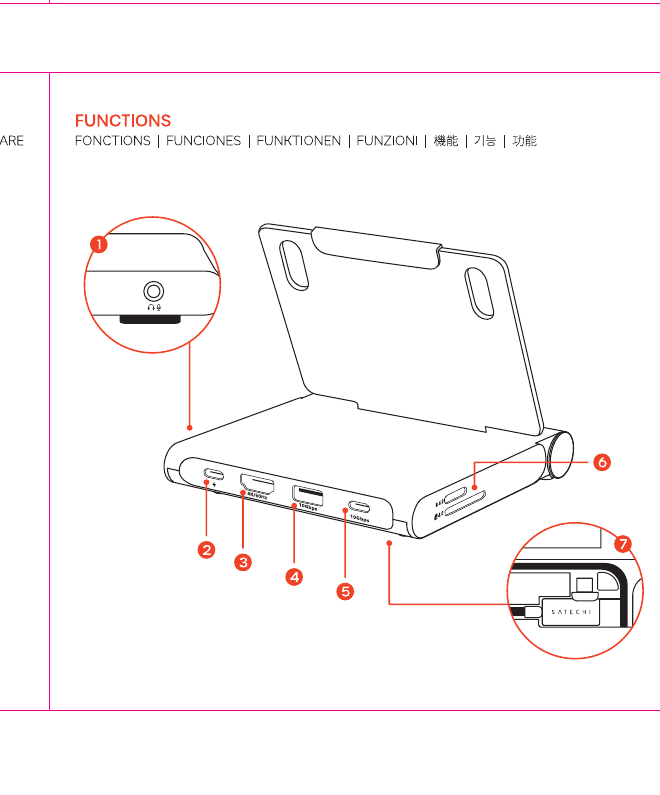

Parts Reference

1. 3.5mm Audio Jack (Input/Output) — 3.5mm audio port supporting both audio input and output. Does not support video or data.
2. USB-C PD Port (100W Input / 85W Output) — USB-C Power Delivery port for charging your host device. Accepts up to 100W input and delivers up to 85W to the host. Does not support video output or data transfer.
3. HDMI Port (4K/60Hz) — HDMI video output supporting up to 4K at 60Hz. Requires a direct HDMI-to-HDMI cable connection.
4. USB-A Port (Up to 10Gbps) — High-speed USB-A data port supporting up to 10 Gbps.
5. USB-C Port (Up to 10Gbps) — USB-C data port supporting up to 10 Gbps. Does not support video output or charging.
6. SD and microSD Card Readers (UHS-II, Up to 312 MB/s) — Dual card readers for SD and microSD cards supporting UHS-II speeds up to 312 MB/s.
7. USB-C Host Cable (Stored in cable compartment) — Built-in USB-C cable that connects the hub to your iPad or compatible USB-C device. The cable folds into the storage channel when not in use.

Setup

The OntheGo Foldable Stand Hub is plug-and-play — no drivers required.

Step 1: Remove the USB-C host cable from the cable storage channel.
Step 2: Unfold the stand to your desired angle.
Step 3: Plug the USB-C host cable into the USB-C port on your iPad or compatible device.
Step 4: Connect your devices to the hub's ports.

Cable Storage

To store the USB-C host cable in the built-in channel:

1. Place the cable into the channel right after the alignment post.
2. Fit the USB-C connector into the cutout.
3. Press the cable into the channel all the way around.
4. Make sure it sits flat, then close the stand.

Important Notes

Host device must support Power Delivery and DP Alt Mode over USB-C: Your host device must support both USB-C Power Delivery and DisplayPort Alternate Mode (DP Alt Mode) over USB-C for full hub functionality, including video output.

USB-C data port does not support video output or charging: Port 5 (USB-C data) is for data transfer only. It does not support video output or output charging.

Direct HDMI-to-HDMI connection required for video output: To use the HDMI port, connect a direct HDMI-to-HDMI cable between the hub and your display. HDMI adapters or converter cables may not work.

Not compatible with Apple USB SuperDrive or other CD readers: The hub cannot power the Apple USB SuperDrive or other optical drives.

Not compatible with thick tablet cases: Very thick tablet cases may prevent proper seating of the hub on your device.

USB device current limit: Connected USB devices should not exceed 5V / 900mA input current.

Frequently Asked Questions

What is the maximum HDMI resolution?
The HDMI port supports up to 4K at 60Hz.

How much charging power does the USB-C PD port deliver?
The USB-C PD port accepts up to 100W input and delivers up to 85W to your connected device.

Does the USB-C data port support video output?
No. Port 5 (USB-C data) is for data transfer only and does not support video output or charging. For video output, use the HDMI port.

What SD card speeds are supported?
Both SD and microSD card readers support UHS-II speeds up to 312 MB/s.

Does my iPad need to support DP Alt Mode?
Yes. Your host device must support USB-C Power Delivery and DisplayPort Alternate Mode (DP Alt Mode) for full functionality including HDMI video output.

Safety Instructions

Warning: Fire, electric shock, or damage could occur if the following instructions are not obeyed.

1. Do not expose to extreme heat or direct sunlight for extended periods.
2. Do not drop or subject the hub to strong impacts.
3. Keep away from liquids and moisture.
4. Do not exceed 5V/900mA input current on USB ports.

Need Help?

Contact Satechi Support at support.satechi.com or email support@satechi.com.
Phone: +1 858 268 1800 | Website: www.satechi.com
