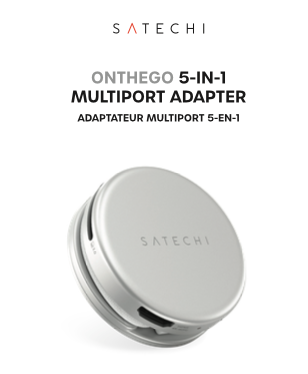

This User Manual covers setup, operation, and safety information for the OntheGo™ 5-in-1 Multiport Adapter | ST-POTG5SB ST-POTG5SY ST-POTG5SP.

Parts diagram of the OntheGo™ 5-in-1 Multiport Adapter with labeled components and port locations.

Satechi OnTheGo 5-in-1 Multiport Adapter, circular silver design with braided USB-C host cable, standing upright.

What's in the box

- OnTheGo 5-in-1 Multiport Adapter
- 2x 3M Adhesive Rings
- User Manual

FUNCTIONS

1. Braided USB-C Cable (Host)
2. USB-C Data Port (up to 5Gbps)
3. USB-C PD Port (60W max)
4. LED Indicator
5. USB-A Data Port (up to 5Gbps)
6. SD Reader (up to 104MB/s)(UHS-I)
7. HDMI Port (up to 4K/60Hz)
8. 2× 3M Adhesive Rings

Product Overview

The Satechi OnTheGo 5-in-1 Multiport Adapter is a compact, circular multiport hub built for on-the-go connectivity. It connects to your laptop or tablet through a built-in braided USB-C host cable and expands a single USB-C port into five: USB-C data, USB-C PD charging, USB-A data, an SD card reader, and HDMI video output. The cable wraps and locks into a groove on the underside of the adapter for tidy storage, and two included 3M adhesive rings let you mount the adapter to the back of a laptop or device for a fixed, always-connected setup. (Note: the magnetic base is for mounting/positioning only — it does not provide wireless charging.)

Ports & Features

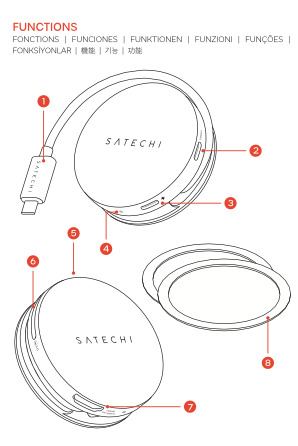

Parts diagram of the OntheGo™ 5-in-1 Multiport Adapter with labeled components and port locations.

Satechi OnTheGo 5-in-1 Multiport Adapter labeled diagram: 1 braided USB-C host cable, 2 USB-C data port, 3 USB-C PD port, 4 LED indicator, 5 USB-A data port, 6 SD card reader, 7 HDMI port, 8 3M adhesive ring mounting point.

1. Braided USB-C Cable (Host) - Built-in cable that connects the adapter to your USB-C laptop, tablet, or phone.
2. USB-C Data Port - Data transfer up to 5Gbps.
3. USB-C PD Port - Pass-through charging, up to 60W max.
4. LED Indicator - Shows power status (see LED Indicators table below).
5. USB-A Data Port - Data transfer up to 5Gbps.
6. SD Card Reader - UHS-I, up to 104MB/s. Insert card with the pins facing down.
7. HDMI Port - Video output up to 4K/60Hz. Note: the USB-C ports on this adapter do not support video output — use the HDMI port for video.
8. 3M Adhesive Ring Mounting Point - Attach the included 3M adhesive ring here to mount the adapter to a device.

Features

- Compact, circular design with a built-in braided USB-C host cable
- 5-in-1 connectivity: USB-C data, USB-C PD charging, USB-A data, SD card reader, HDMI
- Cable wraps into a built-in groove and locks in place for travel
- Includes 2x 3M adhesive rings for mounting to a laptop or device
- White LED power indicator

LED Indicators

Solid White - Powered On

Off - Powered Off

Safety Information

- Magnetic base does not provide wireless charging.
- Insert SD card with the pins facing down.
- Not compatible with Apple USB SuperDrive or CD Readers.
- USB-C ports do not support video output.
- Keep away from water, liquid, and moisture.
