This User Manual covers functions, charging, LED indicators, pairing, and important information for the Satechi Slim EX Wireless Mouse. The Slim EX Wireless Mouse charges with the included USB-C charging cable and connects over Bluetooth (macOS, Windows 11, and Windows 10) or the included 2.4 GHz USB-C receiver.

Satechi Slim EX Wireless Mouse.

Slim EX Wireless Mouse Parts and Functions

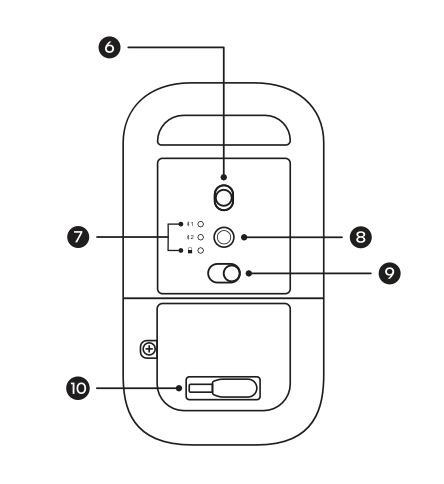

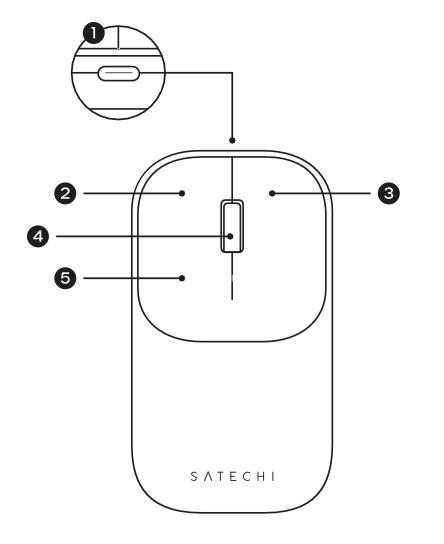

Satechi Slim EX Wireless Mouse labeled diagram with 11 callouts: 1 USB-C Charging Port, 2 Left Click Button, 3 Right Click Button, 4 Scroll Wheel, 5 LED Indicator, 6 ON/OFF Switch, 7 Pairing LED Indicator, 8 Pairing Button, 9 Battery Compartment, 10 USB-C 2.4 GHz Receiver, 11 Access Door.

The Slim EX Wireless Mouse has the following parts:

• USB-C Charging Port (1): Charges the mouse with the included USB-C charging cable.
• Left Click Button (2)
• Right Click Button (3)
• Scroll Wheel (4)
• LED Indicator (5): Blue: charging status. Red: battery low. Green: fully charged. See "LED Indicators" below.
• ON/OFF Switch (6): Green = ON. Red = OFF.
• Pairing LED Indicator (7)
• Pairing Button (8): Hold for 3 to 5 seconds, or until you see the white LED light begin to flash, to pair over Bluetooth.
• Battery Compartment (9)
• USB-C 2.4 GHz Receiver (10): The included 2.4 GHz USB-C receiver dongle, stored inside the mouse. Connect it to the USB-C port on your device to connect over 2.4 GHz.

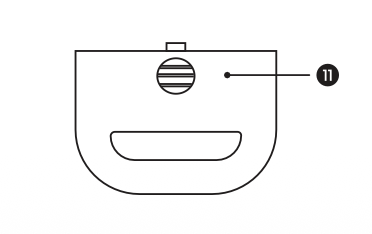

• Access Door (11)

Turning the Slim EX Wireless Mouse On and Off

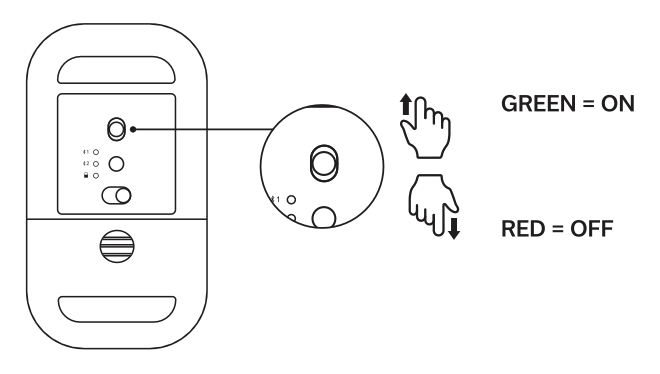

Slim EX Wireless Mouse ON/OFF switch: GREEN = ON, RED = OFF.

• Use the ON/OFF switch to turn the Slim EX Wireless Mouse on or off.
• Green = ON. Red = OFF.

Charging the Slim EX Wireless Mouse

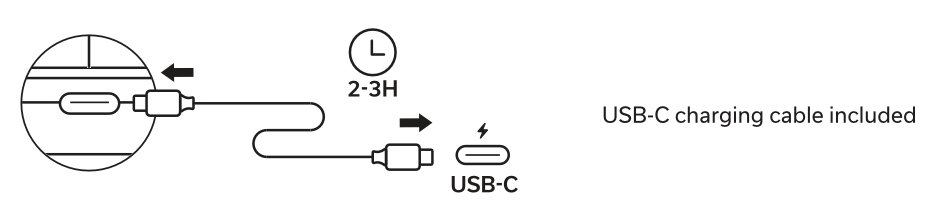

USB-C charging cable connected to the Slim EX Wireless Mouse's USB-C Charging Port, with a clock icon showing 2 to 3 hours.

Connect the included USB-C charging cable to the USB-C Charging Port on the Slim EX Wireless Mouse, then connect the other end to a USB-C power source. Charging takes 2 to 3 hours. The Slim EX Wireless Mouse cannot be used in wired mode, but it will function while charging.

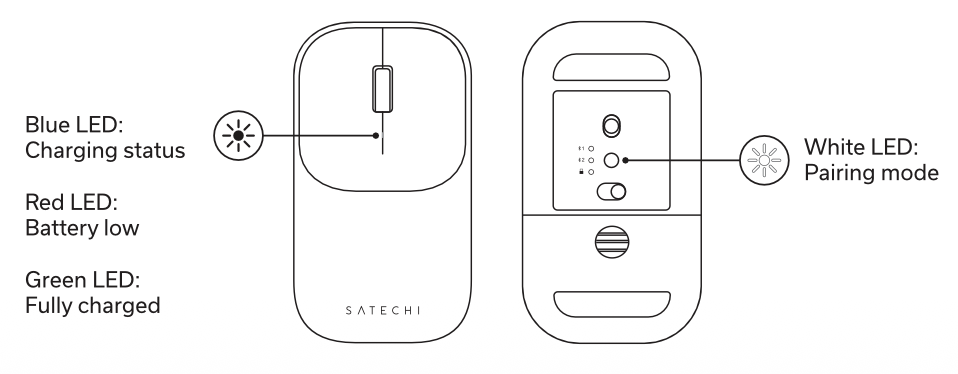

LED Indicators on the Slim EX Wireless Mouse

The LED Indicator (part 5) shows charging and battery status. A white LED shows pairing mode.

• Blue LED: Charging status.
• Red LED: Battery low.
• Green LED: Fully charged.
• White LED: Pairing mode. During Bluetooth pairing, the white LED light begins to flash.

Battery percentage shown on macOS is not supported for the Slim EX Wireless Mouse. Use the LED Indicator for battery level.

Pairing the Slim EX Wireless Mouse with macOS via Bluetooth

1. Launch Settings, then go to Bluetooth & Devices, then Add Device, then Bluetooth. Make sure Bluetooth is enabled on your device.
2. Power on the Slim EX Wireless Mouse. Fully charging the mouse before initial pairing is recommended.
3. Hold the pairing button for 3 to 5 seconds, or until you see the white LED light begin to flash.
4. Select "EX Mouse" from the list of connectable devices.
5. The Slim EX Wireless Mouse will show a connected status when successfully paired.
6. Repeat this process to add up to 2 Bluetooth devices.

Pairing the Slim EX Wireless Mouse with Windows 10 or Windows 11 via Bluetooth

1. Launch Settings, then go to Bluetooth & Devices, then Add Device, then Bluetooth. Make sure Bluetooth is enabled on your device.
2. Power on the Slim EX Wireless Mouse. Fully charging the mouse before initial pairing is recommended.
3. Hold the pairing button for 3 to 5 seconds, or until you see the white LED light begin to flash.
4. Select "EX Mouse" from the list, then click "Next."
5. A progress bar will appear during pairing and will disappear on its own once pairing is complete.

Connecting the Slim EX Wireless Mouse with the 2.4 GHz USB-C Receiver

1. Remove the included 2.4 GHz USB-C receiver dongle from the inside of the Slim EX Wireless Mouse.
2. Connect it to the USB-C port on your device. The Slim EX Wireless Mouse should now be connected to the 2.4 GHz receiver.

Manually Reconnecting the Slim EX Wireless Mouse to the 2.4 GHz USB-C Receiver

If the Slim EX Wireless Mouse does not connect automatically to the 2.4 GHz receiver, it may be necessary to put the mouse in pairing mode:

1. Remove the 2.4 GHz receiver from your device.
2. Hold down the right and middle mouse buttons while turning on the mouse.
3. Insert the 2.4 GHz receiver into your device. This allows the mouse to find the 2.4 GHz dongle and connect.

Multi-Device Use

The Slim EX Wireless Mouse supports multi-device sync with the EX series keyboards via the included 2.4 GHz receiver.

Important

• The Slim EX Wireless Mouse cannot be used in wired mode. It will function while charging.
• Battery percentage shown on macOS is not supported. Use the LED Indicator for battery level.

Compliance Information

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and receiver; connect the equipment into an outlet on a circuit different from that to which the receiver is connected; or consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement: The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

CE Declaration of Conformity: Satechi declares that this product is in compliance with the essential requirements and other relevant provisions of applicable EC directives. For Europe, a copy of the Declaration of Conformity for this product may be obtained by visiting https://satechi.com/pages/doc-1

WEEE Information: According to the WEEE (Waste Electrical and Electronic Equipment) Directive, do not dispose of this product as household waste or commercial waste. Waste electrical and electronic equipment should be appropriately collected and recycled as required by practices established for your country. For information on recycling this product, contact your local authorities, your household waste disposal service, or the shop where you purchased the product.

IC Statement (Canada), IC: 24917-STMEX: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with Canada's radiation exposure limits set forth for an uncontrolled environment and has been evaluated to meet general RF exposure requirements; the device can be used in portable exposure conditions without restriction.

KC (Korea): R-R-laz-ST-MEX

Australian Consumer Law: Satechi goods come with guarantees that cannot be excluded under the Australian Consumer Law. Customers are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. Customers are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Model Number: MN25STH07
