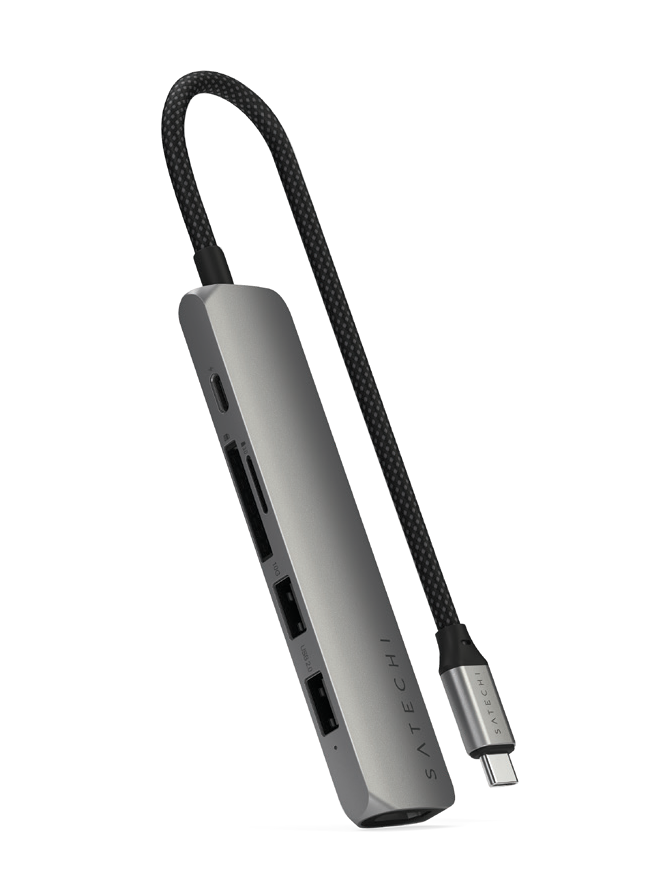

This User Manual covers setup, features, compatibility, and specifications for the Satechi 6-in-1 USB-C Slim Multiport Adapter (ST-P6SM / ST-P6SS / ST-P6SK).

What's In The Box

6-in-1 USB-C Slim Multiport Adapter, User Manual.

Functions

1. USB-C PD Port (Input max. 100W) (Output max. 75W)
2. SD & microSD Card Reader (UHS-I)
3. USB-A 3.2 Gen 2 Port (10Gbps)
4. USB-A 2.0 Port (480Mbps)
5. HDMI Video Port (4K@60Hz)
6. USB-C Connector

Product Overview

The 6-in-1 USB-C Slim Multiport Adapter expands a single USB-C port into six connections: USB-C PD pass-through charging, SD and microSD card readers, USB-A 3.2 Gen 2 and USB-A 2.0 data ports, and 4K@60Hz HDMI video output, connecting to your laptop with its built-in braided USB-C cable.

Setup

The 6-in-1 USB-C Slim Multiport Adapter is plug-and-play, no drivers required.

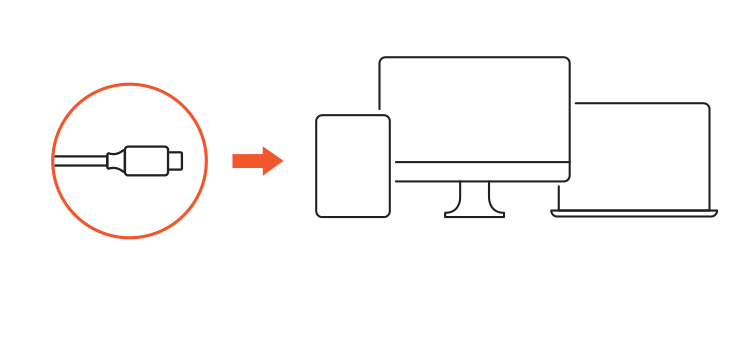

1. Connect to a USB-C host device: Plug the built-in USB-C cable into a USB-C port on your host device.

2. Connect your devices: Connect your devices to the adapter's ports.

Ports and Features

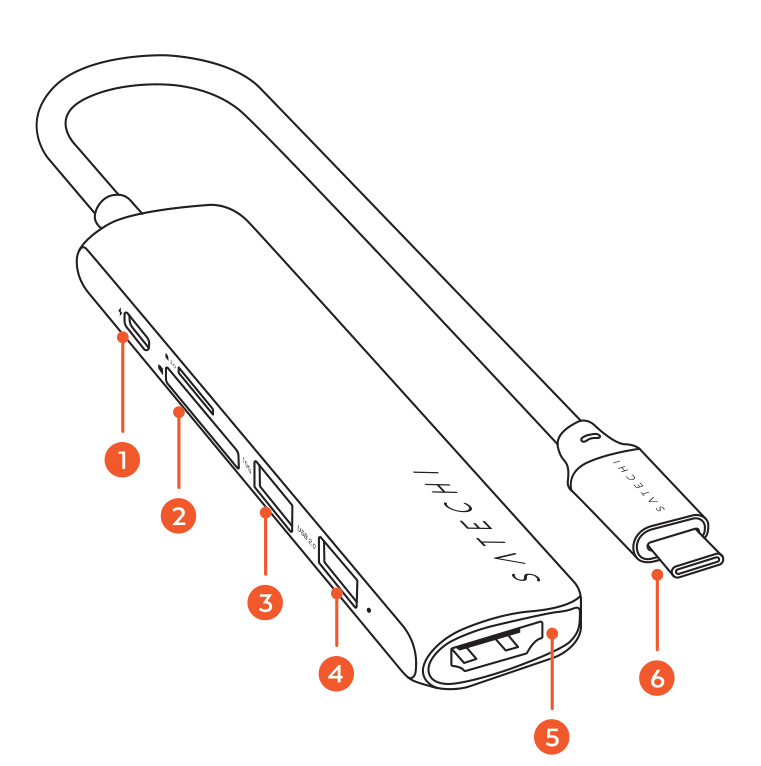

Parts labeled diagram of the 6-in-1 USB-C Slim Multiport Adapter with 6 labeled components.

1. USB-C PD Port (Input max. 100W) (Output max. 75W): Pass-through charging only. Accepts up to 100W in and delivers up to 75W to the host device. Does not support data transfer or video output.
2. SD & microSD Card Reader (UHS-I): Reads SD and microSD cards at UHS-I speeds.
3. USB-A 3.2 Gen 2 Port (10Gbps): High-speed USB-A data port, up to 10 Gbps.
4. USB-A 2.0 Port (480Mbps): USB-A port for low-bandwidth peripherals, up to 480 Mbps.
5. HDMI Video Port (4K@60Hz): HDMI video output supporting up to 4K at 60Hz.
6. USB-C Connector: Built-in braided USB-C cable that plugs into the host device.

Features

- Six connections through one USB-C port
- Up to 75W pass-through charging to the host
- 4K@60Hz HDMI video output
- SD and microSD card readers
- Slim design with built-in braided cable

Important Limitations

Connected USB devices should not exceed an input current of 900mA.

Do not connect more than one external hard drive at a time.

USB-C charging port will not support data transfer or video output.

Not compatible with Apple USB SuperDrive or other CD readers due to excessive power requirements.

Specifications

Model: ST-P6SM (Space Gray) / ST-P6SS (Silver) / ST-P6SK (Black)
Connector: USB-C (built-in braided cable)
Ports & Speeds:
1x USB-C PD: input max. 100W, output max. 75W (charging only)
1x HDMI: up to 4K 60Hz
1x USB-A 3.2 Gen 2: up to 10 Gbps
1x USB-A 2.0: up to 480 Mbps
1x SD + microSD card reader: UHS-I

Certifications

FCC, CE, WEEE, CAN ICES(B)/NMB(B)
