This User Manual covers setup, features, compatibility, and specifications for the Satechi Aluminum Type-C Clamp Hub Pro (ST-TCIMHS / ST-TCIMHM).

What's In The Box

Type-C Clamp Hub Pro, User Manual.

Functions

1. USB-C Connector
2. Adjustable Clamps
3. SD & Micro SD Card Readers (UHS-I)
4. 3X USB-A Data Ports (5Gbps)
5. LED Indicator
6. USB-C Data Port (5Gbps)

Product Overview

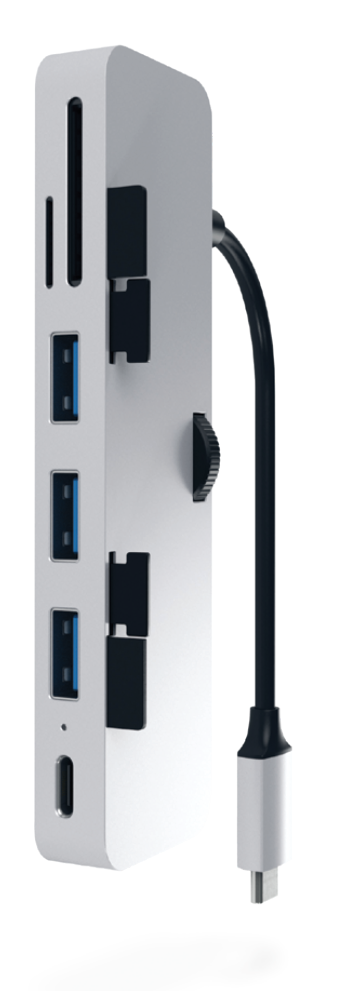

The Aluminum Type-C Clamp Hub Pro fastens to the base of your iMac and puts six connections within reach: three USB-A data ports and a USB-C data port at up to 5Gbps each, plus SD and Micro SD card readers at UHS-I speeds.

Setup

The Aluminum Type-C Clamp Hub Pro is plug-and-play, no drivers or software required.

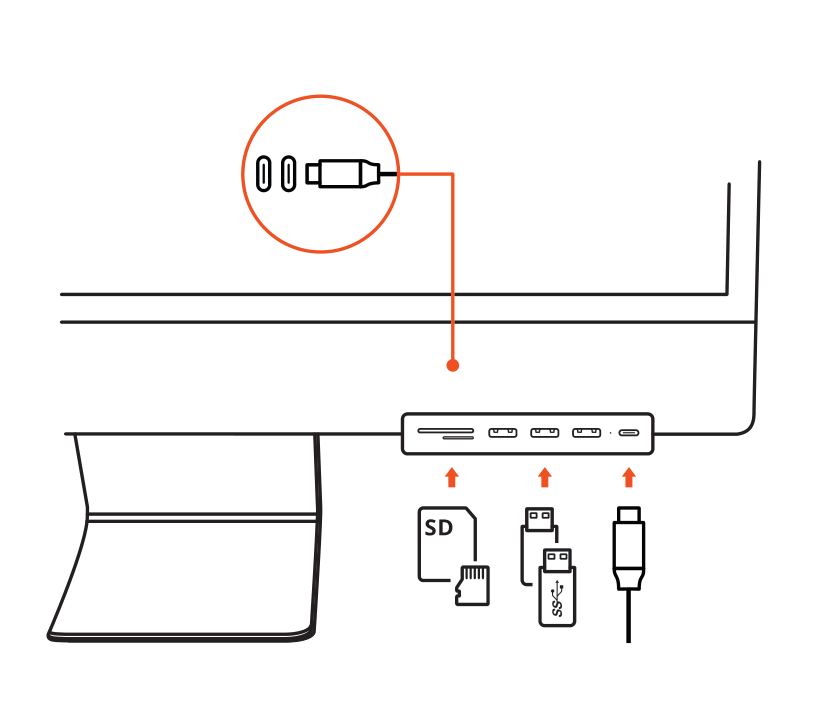

1. Adjust the clamp: When facing the ports, turn the knob clockwise to adjust the clamp; counterclockwise to fasten the hub to your iMac.
2. Connect your iMac and devices: Plug the hub's USB-C connector into a USB-C port on your iMac, then connect your devices to the hub's ports.

Ports and Features

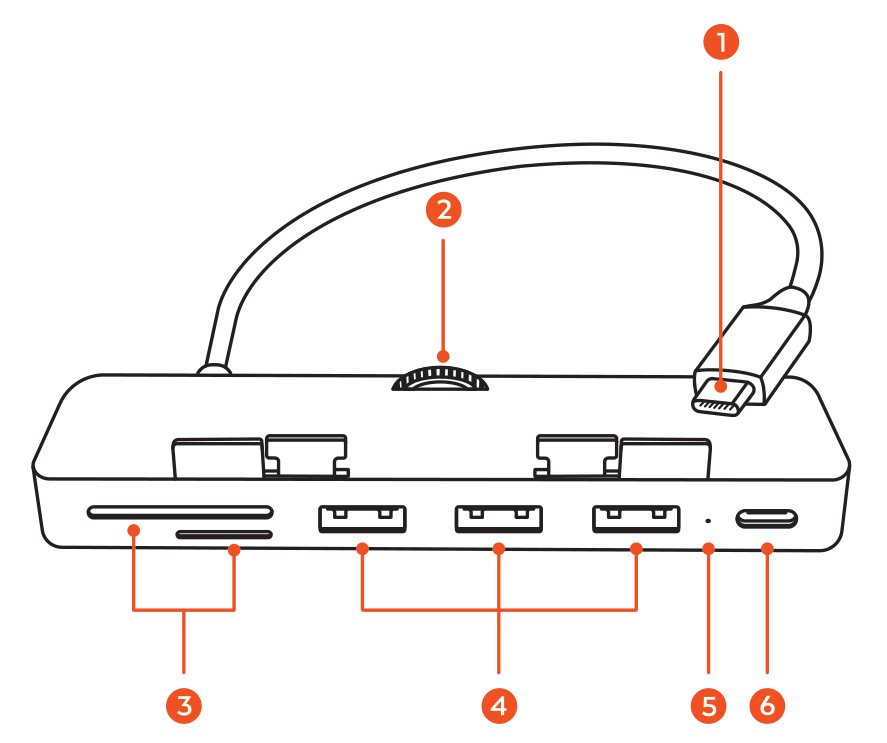

Parts labeled diagram of the Aluminum Type-C Clamp Hub Pro with 6 labeled components.

1. USB-C Connector: The attached USB-C connector that plugs the hub into your iMac, on a 6 in cable.
2. Adjustable Clamps: The clamps that hold the hub on the base of your iMac. Turn the knob clockwise to adjust the clamp and counterclockwise to fasten the hub in place.
3. SD & Micro SD Card Readers (UHS-I): Card readers for SD and Micro SD cards at UHS-I speeds. Only one of the two slots can be read at a time.
4. 3X USB-A Data Ports (5Gbps): Three USB-A ports for data transfer at up to 5Gbps.
5. LED Indicator: Lights up when the hub is connected and powered.
6. USB-C Data Port (5Gbps): USB-C port for data transfer at up to 5Gbps. It does not support charging or video output.

Features

- Adjustable clamps hold the hub on the base of your iMac
- Three USB-A data ports and one USB-C data port, up to 5Gbps each
- SD and Micro SD card readers at UHS-I speeds
- LED indicator confirms the hub is connected
- Plug and play, no drivers or software required

Important Limitations

USB-C Data Port will not support charging or video output. It is a data-only port, up to 5Gbps.

SD card and micro SD card won't read simultaneously. Use one card slot at a time.

Not compatible with iMac 2021 or later. Use this hub with iMac models released before 2021.

Specifications

Model: ST-TCIMHS (Silver) / ST-TCIMHM (Space Gray)
Dimensions: 4.63" x 1.31" x 0.44"
Weight: 2.12 oz
Connector: USB-C, 6 in cable
Ports & Speeds:
3x USB-A: up to 5Gbps data
1x USB-C data port: up to 5Gbps (does not support charging or video output)
1x SD and Micro SD card slot: UHS-I speeds, one card at a time

Certifications

FCC, CE, WEEE
