This User Manual covers setup, features, compatibility, and specifications for the Satechi Type-C 2-in-1 USB Hub with Ethernet (ST-TC2N1USB31AS / ST-TC2N1USB31AM).

What's In The Box

Type-C 2-in-1 USB Hub with Ethernet, User Manual.

Functions

1. LED Indicator
2. 3X USB-A 3.0 Ports (5Gbps)
3. Ethernet Port (Up to 1 Gigabit)
4. USB-C Connector

Product Overview

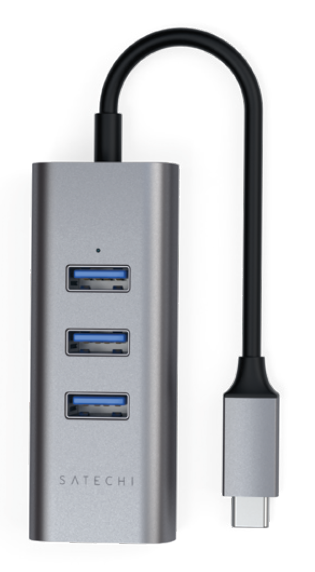

The Type-C 2-in-1 USB Hub with Ethernet turns a single USB-C port on your laptop or tablet into four connections: three USB-A 3.0 data ports at up to 5Gbps and a Gigabit Ethernet port for a stable wired network, with an LED that confirms the hub is connected.

Setup

The Type-C 2-in-1 USB Hub with Ethernet is plug-and-play, no drivers or software required.

1. Connect to a laptop or tablet: Plug the hub's USB-C connector into the USB-C port on your laptop or tablet.

2. Connect your devices: Connect your devices to the hub's ports.

Ports and Features

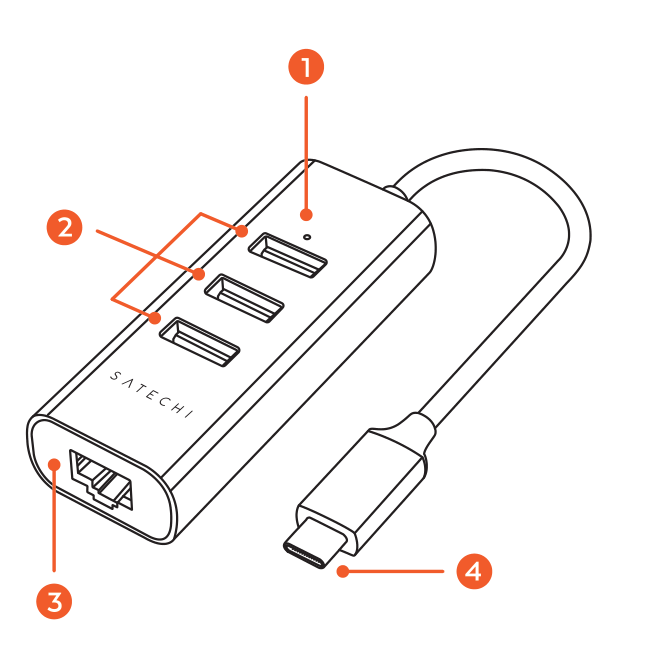

Parts labeled diagram of the Type-C 2-in-1 USB Hub with Ethernet with 4 labeled components.

1. LED Indicator: Lights up when the hub is connected and powered.
2. 3X USB-A 3.0 Ports (5Gbps): Three USB-A 3.0 ports for data transfer at up to 5Gbps. They are not designed for charging, and they will not run an Apple SuperDrive or charge an iPad.
3. Ethernet Port (Up to 1 Gigabit): Wired network port supporting 10/100/1000 Mbps, up to 1 Gigabit.
4. USB-C Connector: The attached USB-C connector that plugs the hub into your laptop or tablet.

Features

- Three USB-A 3.0 data ports, up to 5Gbps
- Gigabit Ethernet for a stable wired connection
- LED indicator confirms the hub is connected
- Plug and play, no drivers or software required

Important Limitations

The USB ports are not designed for charging, only for devices syncing, data transfer and USB peripherals. Using them to charge a connected device is not supported.

The USB-A ports will not support an Apple SuperDrive or charge iPads. Both need more power than these ports provide.

Connect one bus-powered device at a time. The hub draws its power from your laptop or tablet, so run a single bus-powered device on it at a time.

Specifications

Model: ST-TC2N1USB31AS (Silver) / ST-TC2N1USB31AM (Space Gray)
Dimensions: 3.75" x 1.25" x 0.8"
Weight: 2 oz
Connector: USB-C
Ports & Speeds:
3x USB-A 3.0: up to 5Gbps data (not designed for charging)
1x Ethernet: 10/100/1000 Mbps, up to 1 Gigabit

Certifications

FCC, CE, ICES-003 / NMB-003 (Canada)
