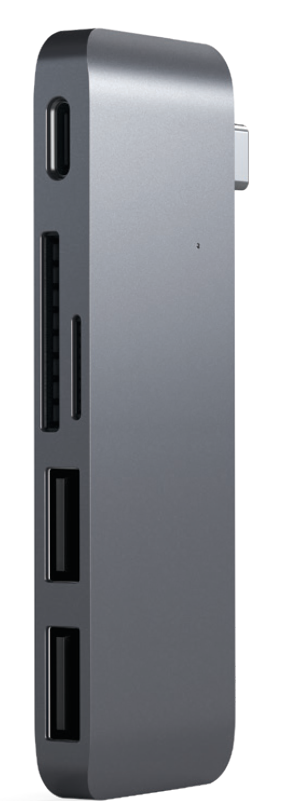

This User Manual covers setup, features, compatibility, and specifications for the Satechi Type-C Pass-Through USB Hub (ST-TCUPS / ST-TCUPM / ST-TCUPR).

What's In The Box

Type-C Pass-Through USB Hub, User Manual.

Functions

1. Power LED Indicator
2. USB-C PD Port (60W Max)
3. SD & MicroSD Card Reader (UHS-I)
4. 2x USB-A 3.0 Ports (5Gbps)

Product Overview

The Type-C Pass-Through USB Hub adds two USB-A 3.0 data ports and an SD and MicroSD card reader to a single USB-C port, and keeps your laptop charging the whole time through a 60W USB-C Power Delivery pass-through port, so you do not have to choose between power and accessories.

Setup

The Type-C Pass-Through USB Hub is plug-and-play, no drivers or software required.

1. Connect to a laptop: Plug the hub's USB-C connector into the USB-C port on your laptop.

2. Connect your devices: Connect your devices to the hub's ports.

Ports and Features

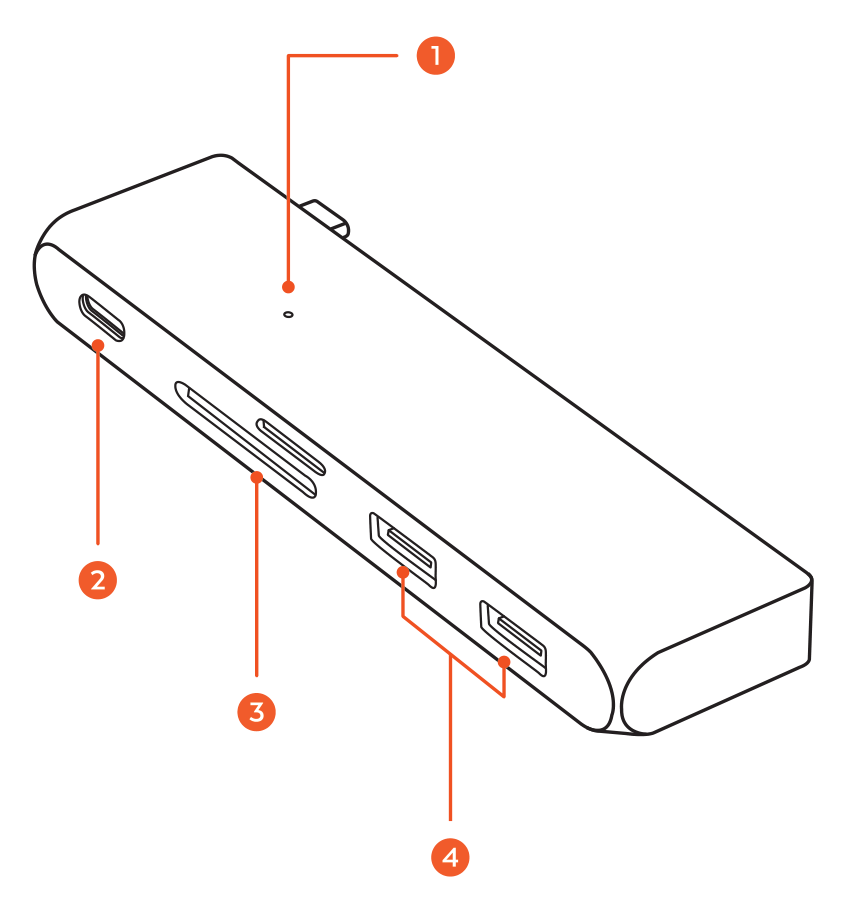

Parts labeled diagram of the Type-C Pass-Through USB Hub with 4 labeled components.

1. Power LED Indicator: Lights up when the hub is connected to your laptop and receiving power.
2. USB-C PD Port (60W Max): USB-C Power Delivery port for pass-through charging, up to 60W. It is power only: it does not support data transfer or video output.
3. SD & MicroSD Card Reader (UHS-I): Card reader for SD and MicroSD cards at UHS-I speeds.
4. 2x USB-A 3.0 Ports (5Gbps): Two USB-A 3.0 ports for data transfer, up to 5 Gbps each. Connected USB devices should not draw more than 5V/900mA.

Features

- Up to 60W pass-through charging through the USB-C PD port
- Two USB-A 3.0 data ports, up to 5 Gbps each
- SD and MicroSD card reader at UHS-I speeds
- Power LED indicator confirms the hub is connected
- Plug-and-play, no drivers or software required

Important Limitations

The USB-C charging port will not support data transfer or video output. It is a power-only port. Use the USB-A ports for data and do not expect a display to work from it.

Connected USB devices should not exceed power requirements above 5V/900mA. This is the per-port limit for devices plugged into the hub. Higher draw accessories, such as portable drives without their own power supply, may not run reliably.

Specifications

Model: ST-TCUPS (Silver) / ST-TCUPM (Space Gray) / ST-TCUPR (Rose Gold)
Dimensions: 3.31" x 1.06" x 0.3"
Weight: 0.88 oz
Connector: USB-C
Ports & Speeds:
1x USB-C pass-through charging: up to 60W
1x micro SD and SD card reader slots
2x USB-A data ports: up to 5 Gbps

Certifications

FCC, CE, WEEE, ICES-003 / NMB-003 (Canada)
