This User Manual covers setup, features, compatibility, and specifications for the Satechi Mobile XR Hub with Audio (ST-HXRAJM).

Product Overview

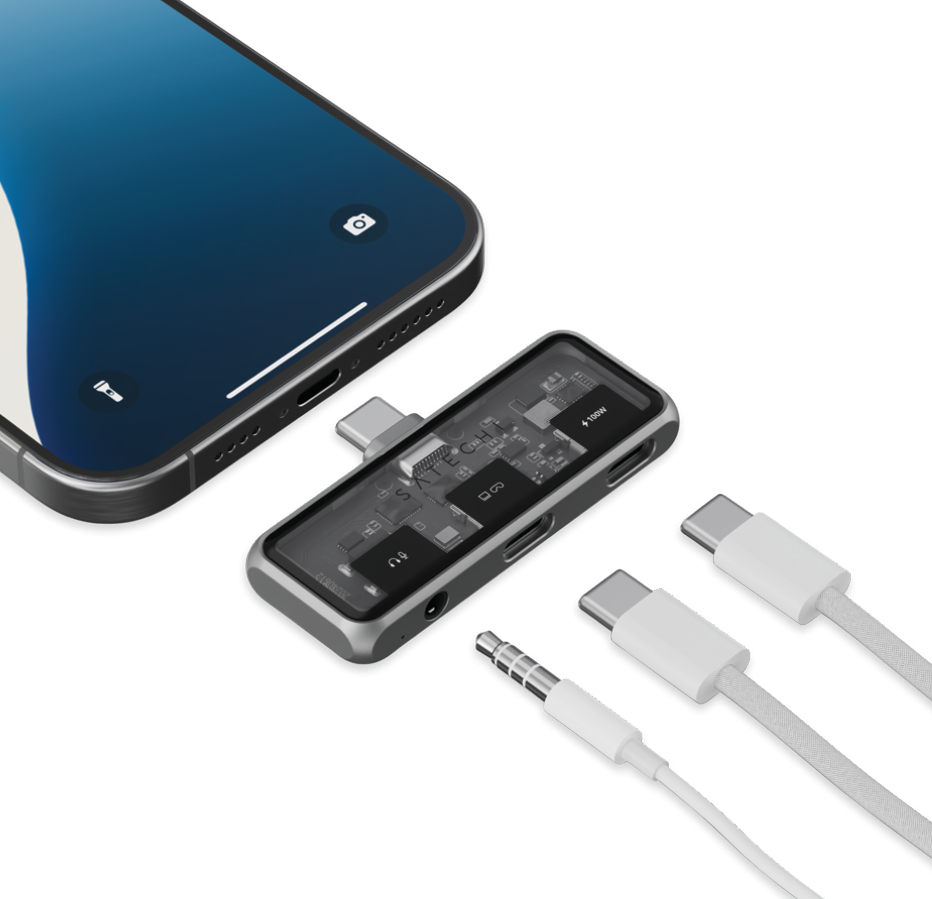

The Mobile XR Hub with Audio connects to a USB-C host device through its USB-C Connector and adds a USB-C Video & Data Port (up to 4K/60Hz, 10Gbps), a USB-C PD Port (up to 100W, USB2.0 Audio), and a 3.5 mm Audio Jack Port (Input/Output). Use it to connect XR/AR glasses to your host device.

Setup

The Mobile XR Hub with Audio is plug and play.

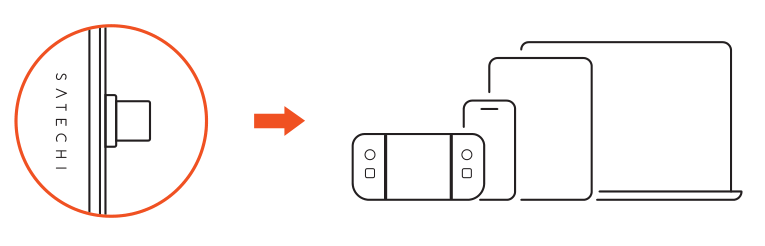

1. Connect to a USB-C host device: Connect the hub's USB-C Connector to your USB-C host device.

2. Connect your devices: Connect your devices to the hub's ports.

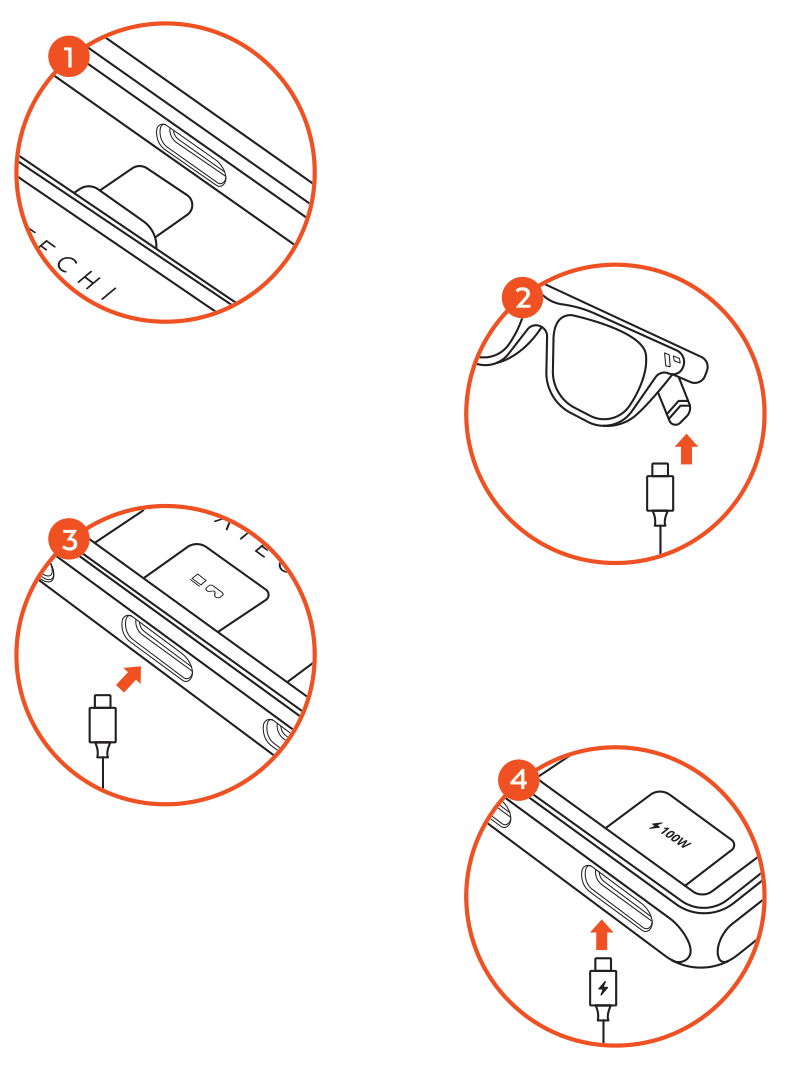

Connecting to XR/AR Glasses

1. Connect Mobile XR Hub to your host device.
2. Connect USB-C cable to XR/AR glasses.
3. Connect the other end of the cable to the USB-C port.
4. It is recommended to connect power to your device to prevent battery drainage.

Note: USB-C cable not included.

Functions

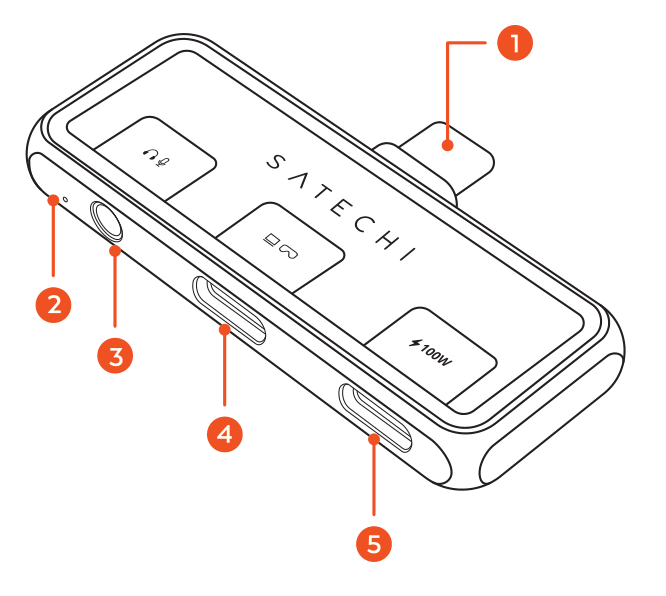

Parts labeled diagram of the Mobile XR Hub with Audio with 5 labeled components.

1. USB-C Connector
2. LED Indicator
3. 3.5 mm Audio Jack Port (Input/Output)
4. USB-C Video & Data Port (up to 4K/60Hz*) (10Gbps): *When outputting video to external monitors, some USB-C based monitors may only support 4K/30Hz resolution.
5. USB-C PD Port (up to 100W) (USB2.0 Audio)

Features

- Plug and play with a USB-C host device
- USB-C Video & Data Port: up to 4K/60Hz, 10Gbps
- USB-C PD Port: up to 100W, USB2.0 Audio
- 3.5 mm Audio Jack Port (Input/Output)
- Compatible XR/AR glasses: Viture, XREAL, ROKID, TCL, RAYNEO
- Compatible host devices: iPhone 16 Pro/Pro Max, iPhone 15 Pro/Pro Max, Android Smartphones (USB-C), iPad Pro/Air, Android Tablet (USB-C), Steam Deck, Nintendo Switch, MacBook Pro/Air, Windows Laptops

Important Limitations

Maximum refresh rate is 60Hz.

When outputting video to external monitors, some USB-C based monitors may only support 4K/30Hz resolution.

Unplug connected peripherals before disconnecting power.

Host device must support video output and power delivery over USB-C for full compatibility.

Connect power to prevent battery drainage. When connecting XR/AR glasses, it is recommended to connect power to your device to prevent battery drainage.

USB-C cable not included. A USB-C cable is needed to connect your XR/AR glasses to the hub.

Specifications

Model: ST-HXRAJM
Connector: USB-C
Ports & Speeds:
1x USB-C Video & Data Port: up to 4K/60Hz, 10Gbps
1x USB-C PD Port: up to 100W, USB2.0 Audio
1x 3.5 mm Audio Jack Port: Input/Output
Maximum Refresh Rate: 60Hz

Certifications

FCC, CE, WEEE, CAN ICES-003 (B) / NMB-003 (B) (Canada)
