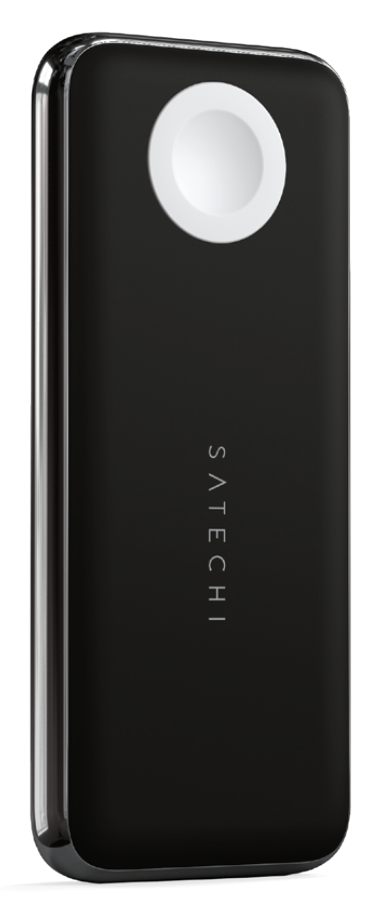

This User Manual covers setup, features, compatibility, and specifications for the Satechi Quatro Wireless Power Bank (ST-UC10WPBM).

What's In The Box

Quatro Wireless Power Bank, USB-C charging cable, User Manual.

Functions

1. Apple Watch Magnetic Charger
2. Qi Charger (Up to 5W)
3. Power Button
4. Battery Level Indicators
5. Wireless Charging Indicator
6. USB-C Port (Input/Output 18W Max.)
7. USB-A Port (12W Max.)

Product Overview

The Quatro Wireless Power Bank carries 10000 mAh across two 5000 mAh cells and tops up several devices at once: a Qi phone or earbuds on the wireless pad, an Apple Watch on the raised magnetic module, and a wired device on the USB-C or USB-A port. The same USB-C port recharges the power bank itself.

Setup

Fully charge the power bank before you use it for the first time.

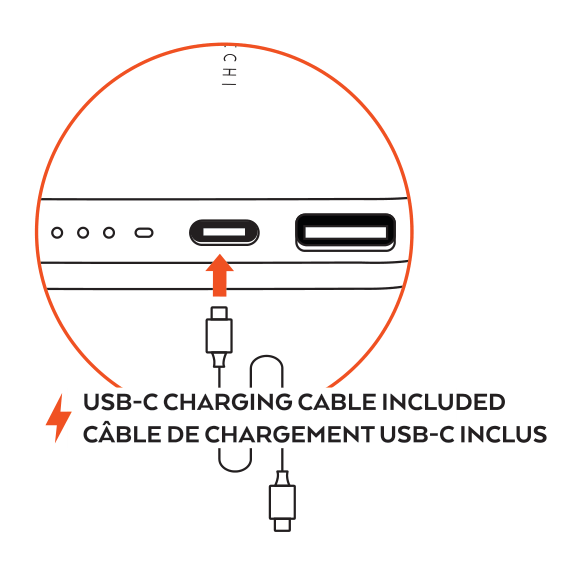

1. Charge the power bank: Plug the included USB-C cable into the USB-C port on the power bank and connect the other end to a USB-C power source. Four lit battery indicators mean it is fully charged.

2. Check the battery level: Press the power button once. Four lit indicators mean a full charge and two lit indicators mean about 50 percent.
3. Turn on the wireless chargers: Press the power button twice. The wireless charging indicator lights blue.
4. Charge wirelessly: Place a Qi device on the Satechi logo, or place an Apple Watch display side up on the magnetic module. The indicator turns orange once charging begins.
5. Charge over a cable: Connect a device to the USB-C port or the USB-A port.

Note: For best use, we recommend charging up to three devices at a time.

Turning the Wireless Chargers On and Off

1. Press the power button twice. The blue LED lights, and both the Qi charger and the Apple Watch charger are on.
2. Press the power button twice again. The blue LED goes out and the Qi charger switches off. The Apple Watch magnetic charger stays on.

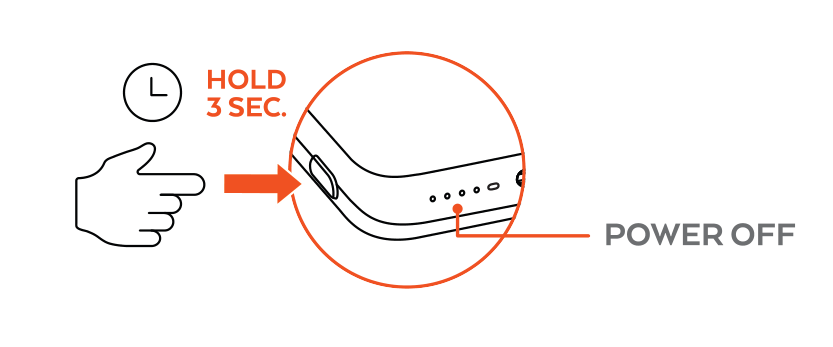

Powering Off

1. Press and hold the power button for 3 seconds until the indicators go out.

Ports and Features

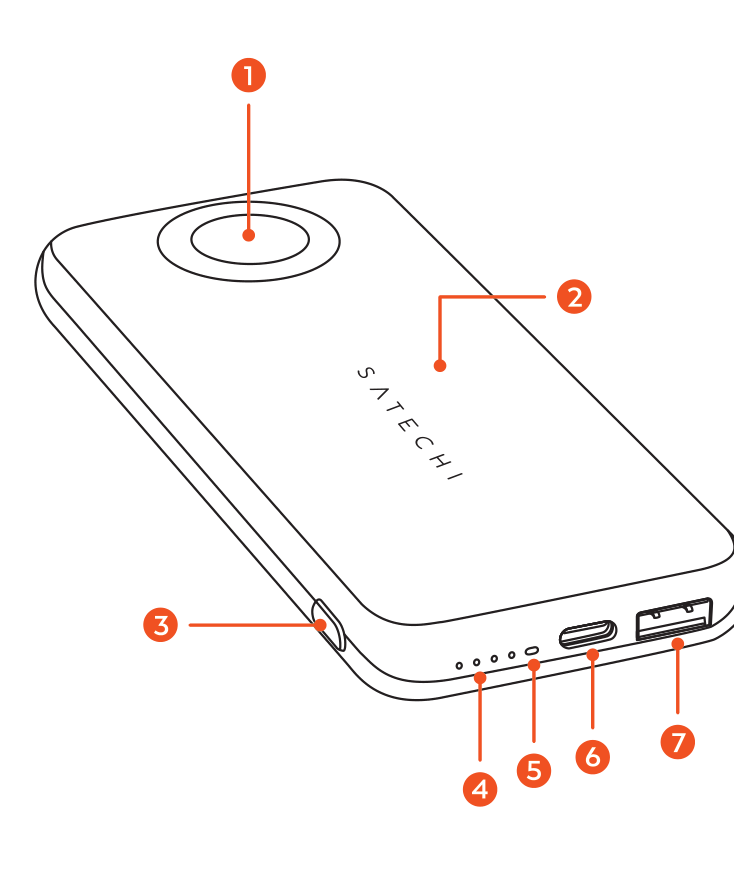

Parts labeled diagram of the Quatro Wireless Power Bank with 7 labeled components.

1. Apple Watch Magnetic Charger: The raised magnetic puck on the top face. Set an Apple Watch on it display side up to charge at up to 2.5W. It stays live whenever the power bank is on, even when the Qi pad is switched off.
2. Qi Charger (Up to 5W): The wireless charging pad under the Satechi logo, rated up to 5W. Center the device on the logo. Do not put metal objects on the pad.
3. Power Button: One press shows the battery level, two presses turn the Qi charger on or off, and a 3 second hold powers the unit off.
4. Battery Level Indicators: Four LEDs that report the charge left in the pack. Four lit means full and two lit means about 50 percent.
5. Wireless Charging Indicator: Lights blue when the wireless chargers are switched on, and orange while a wireless device is charging.
6. USB-C Port (Input/Output 18W Max.): Recharges the power bank and also powers USB-C devices, up to 18W in either direction. Fast charging an iPhone from this port needs a USB-C to Lightning cable, sold separately.
7. USB-A Port (12W Max.): Charges one more wired device such as an iPhone or AirPods, up to 12W.

Features

- 10000 mAh total capacity from two 5000 mAh cells
- Qi wireless charging up to 5W and Apple Watch magnetic charging up to 2.5W
- Wired charging on USB-C up to 18W and on USB-A up to 12W
- Recharges through the same USB-C port it charges from
- Up to three devices at a time

Important Limitations

Before using your Quatro Wireless Power Bank for the first time, fully charge it. Charge it through the USB-C port with the included cable until all four battery indicators are lit.

To preserve lifespan, use and recharge your battery at least once every 4 months. This applies while the power bank is in storage too.

Do not place any metallic objects onto the charger. That includes coins, keys, and metal rings or plates on the back of a phone case.

Keep your battery dry and away from moisture and corrosive materials. Store and use it in a dry place.

For best use, we recommend charging up to three devices at a time. The power bank has four charging outputs, but three at once is the recommended limit.

Fast charging requires a USB-C to Lightning cable, sold separately. The cable included in the box is for recharging the power bank over USB-C.

Specifications

Model: ST-UC10WPBM
Capacity: 10000 mAh total, two 5000 mAh cells
Connector: USB-C
Ports & Speeds:
1x USB-C: input and output, up to 18W
1x USB-A: output, up to 12W
1x Qi wireless charging pad: up to 5W
1x Apple Watch magnetic charger: up to 2.5W

Certifications

FCC, CE, EAC, IC (Canada)
