This Quick Start Guide covers setup of the Satechi USB-C Slim Dock for 24" iMac (ST-UCISDS / ST-UCISDB): connecting the dock to your iMac, using the USB-C, USB-A, and card reader ports, installing an SSD, and connecting USB 2.0 devices.

Setup steps:

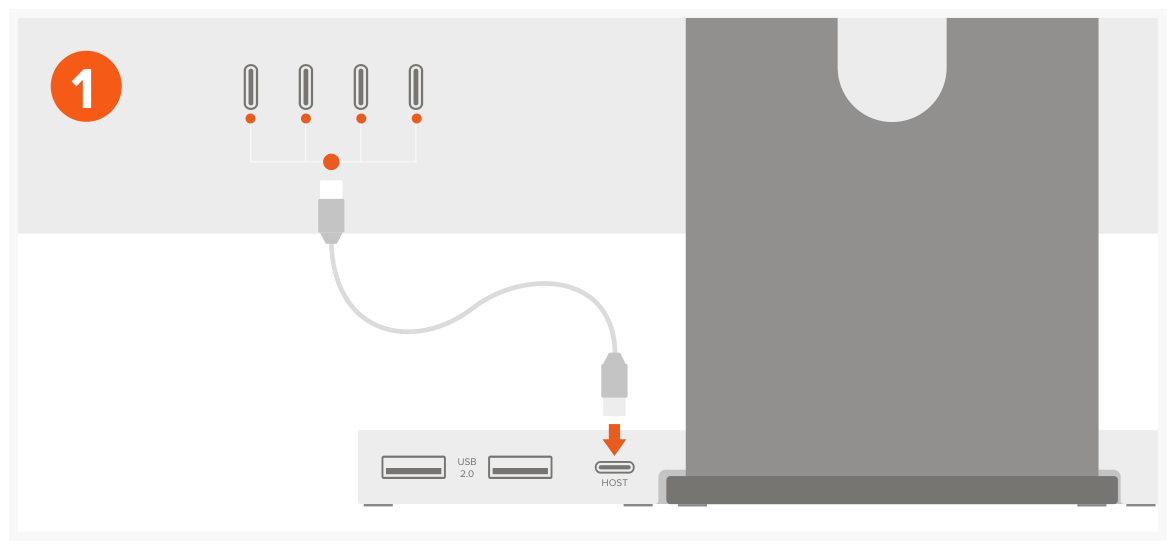

Step 1: Connect the Hub to one of your iMac’s Thunderbolt ports by connecting to the “HOST” port on the dock, using the included USB-C cable.

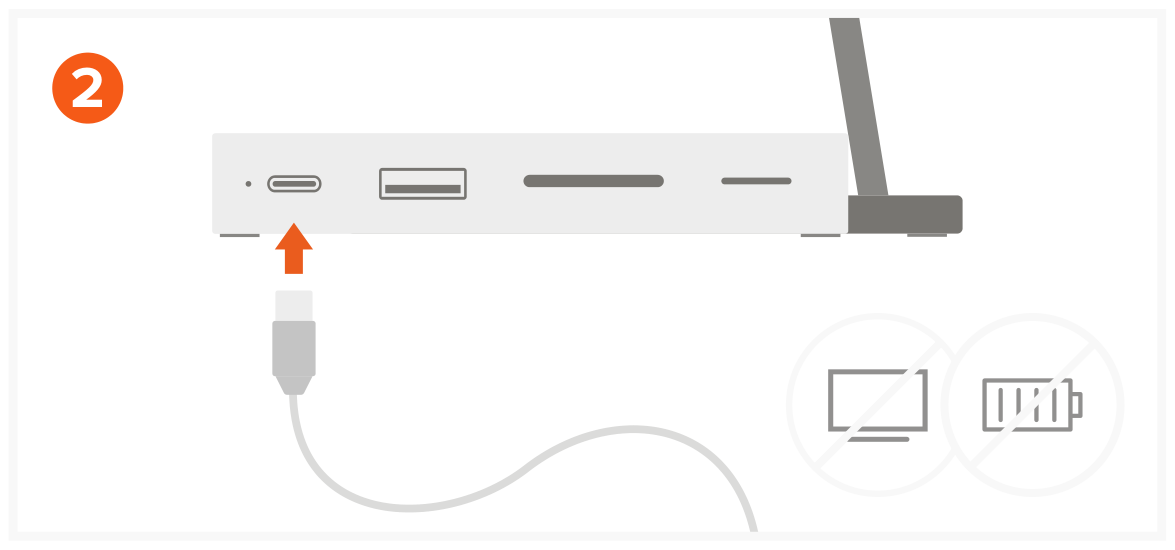

Step 2: Connect a USB-C drive or peripheral to the USB-C data port (up to 10 Gbps).

Does not support charging or video.

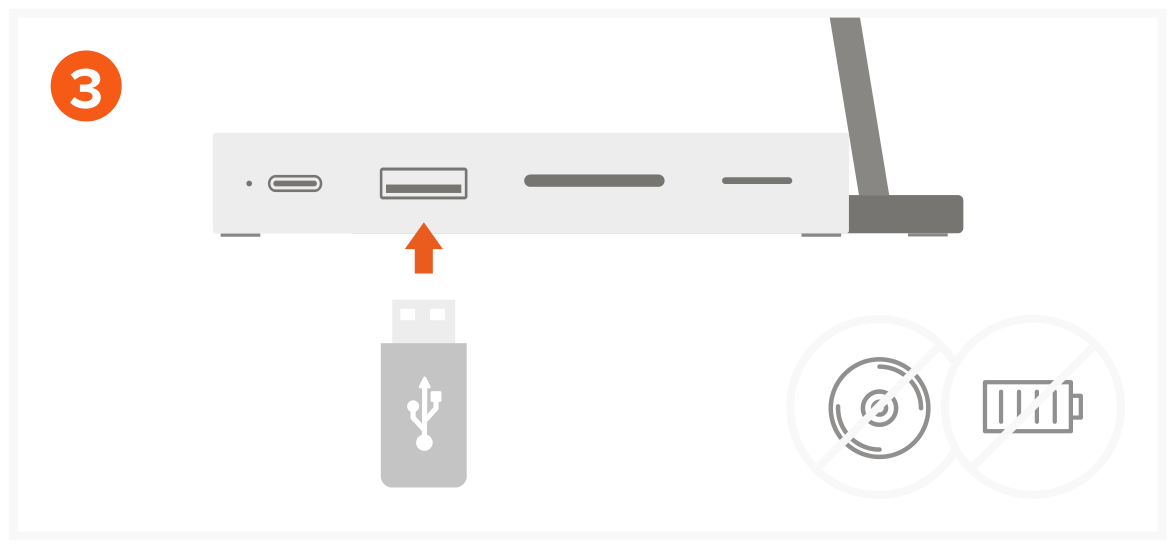

Step 3: Use the USB-A data port to connect USB devices up to 10 Gbps.

Does not support charging or CD readers, including Apple USB SuperDrive.

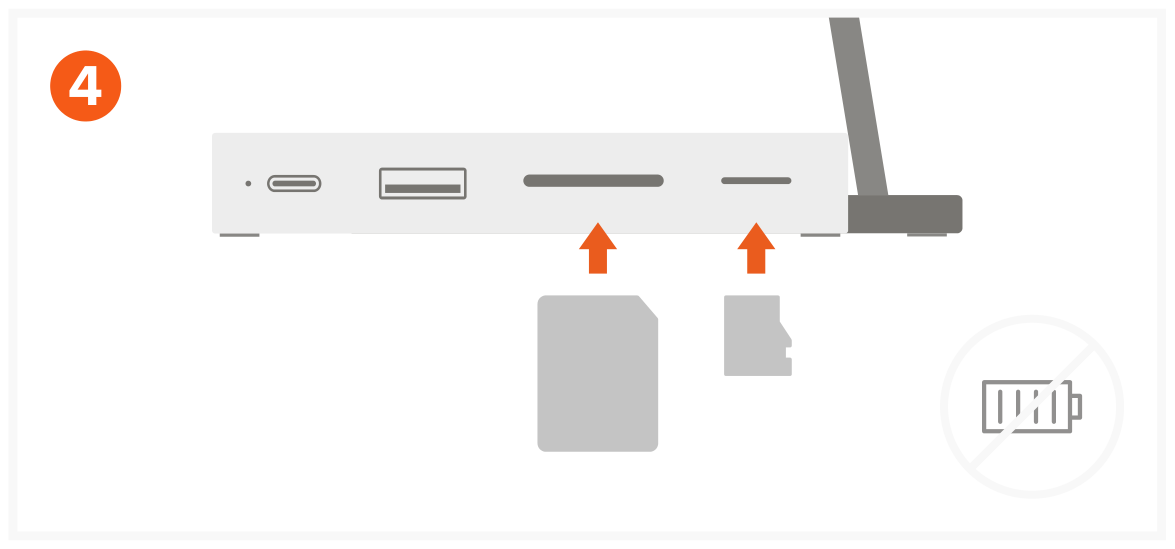

Step 4: Insert micro or SD cards into card reader slots.

Supports UHS-I speeds.

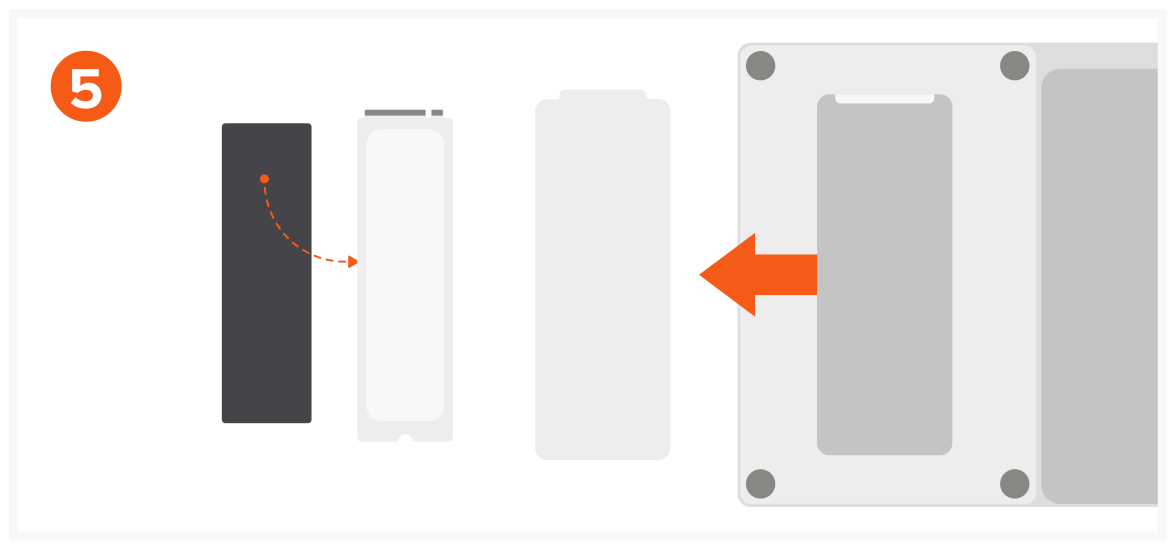

Step 5: To install the SSD, lift the backside cover on the adapter. Apply the Thermal Pad included to the bottom of the SSD. Ensure pad is properly aligned.

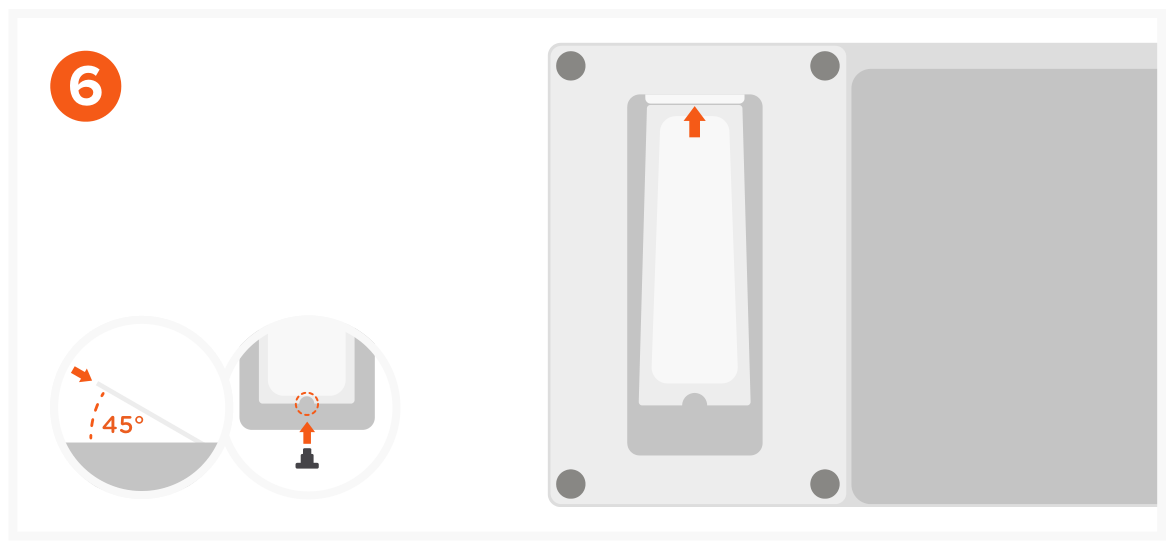

Step 6: Insert the SSD (not included) faceup at a 45-degree angle. Once installed, push down on the SSD and use the silicone pin to keep it in place.

Supports NVMe & SATA (up to 10Gbps max speed, 2TB max capacity)

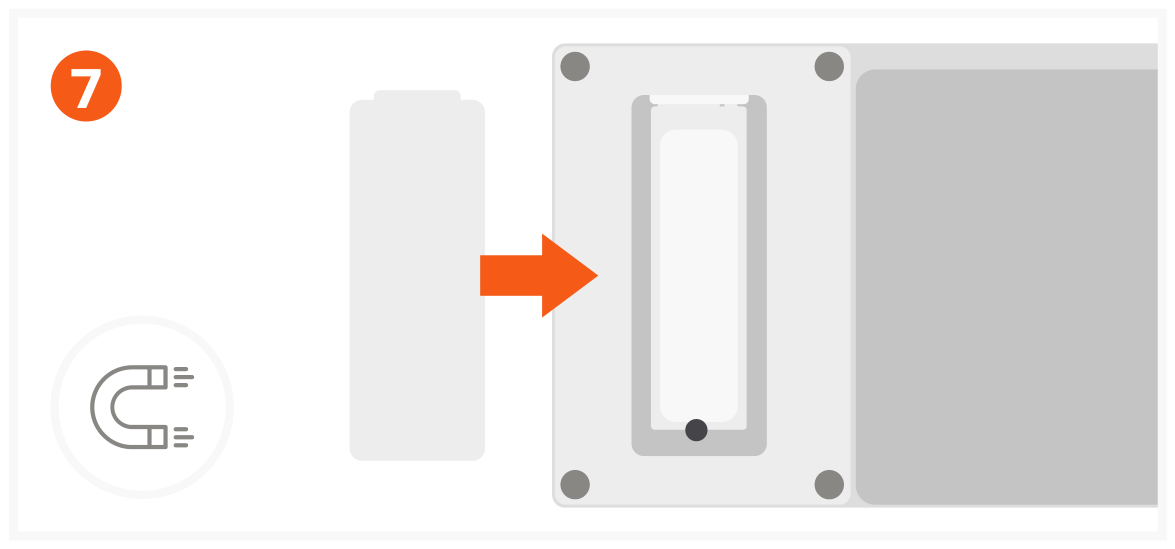

Step 7: Once the SSD is secured, magnetize the cover back onto the hub.

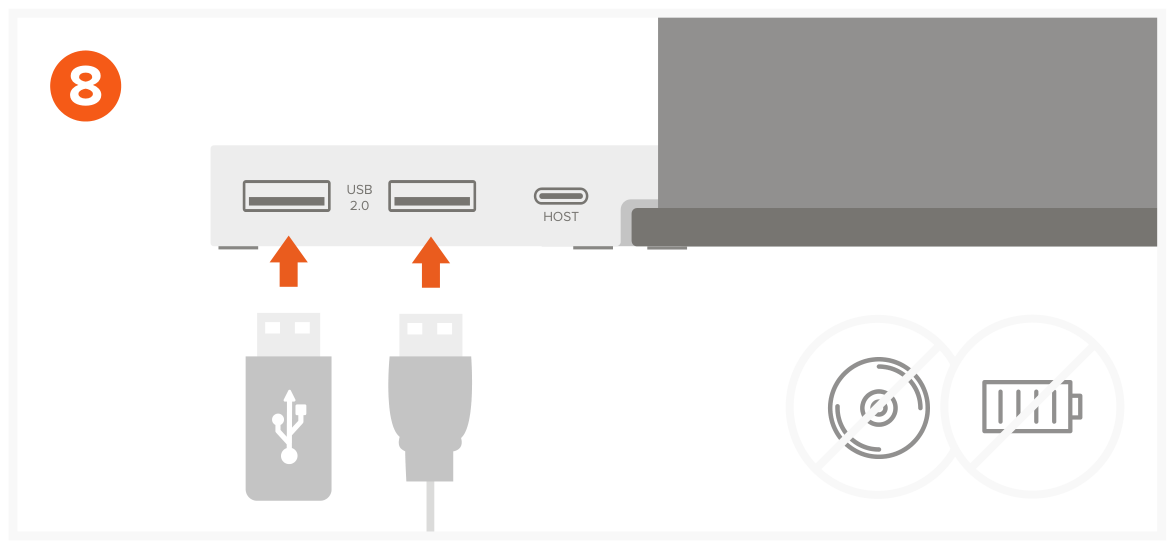

Step 8: Use 2 USB 2.0 data ports (480Mbps) on the back of the hub to connect USB devices.

Does not support charging or CD readers, including Apple USB SuperDrive.
