This Quick Start Guide covers setup of the Satechi USB-C NVMe and SATA SSD Enclosure (ST-UCNSEM): an aluminum USB-C enclosure for M.2 PCIe NVMe and SATA SSDs.

Setup steps

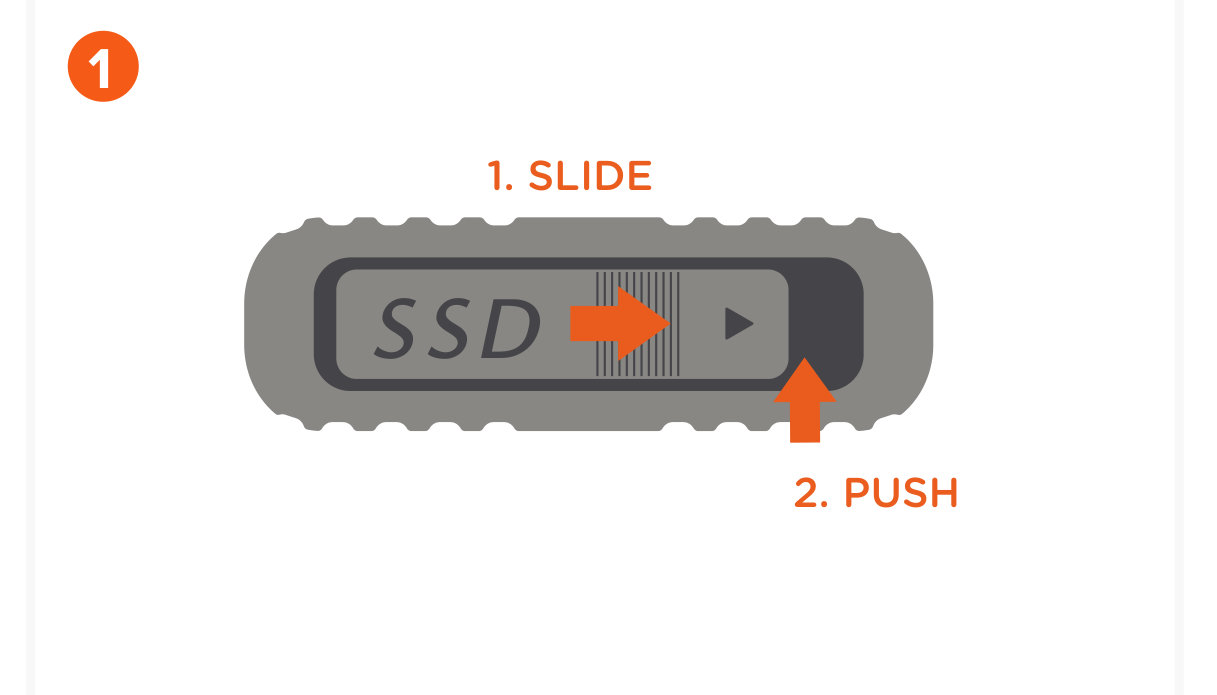

Step 1: To install the SSD, slide and push on the switch to unlock the internal enclosure.

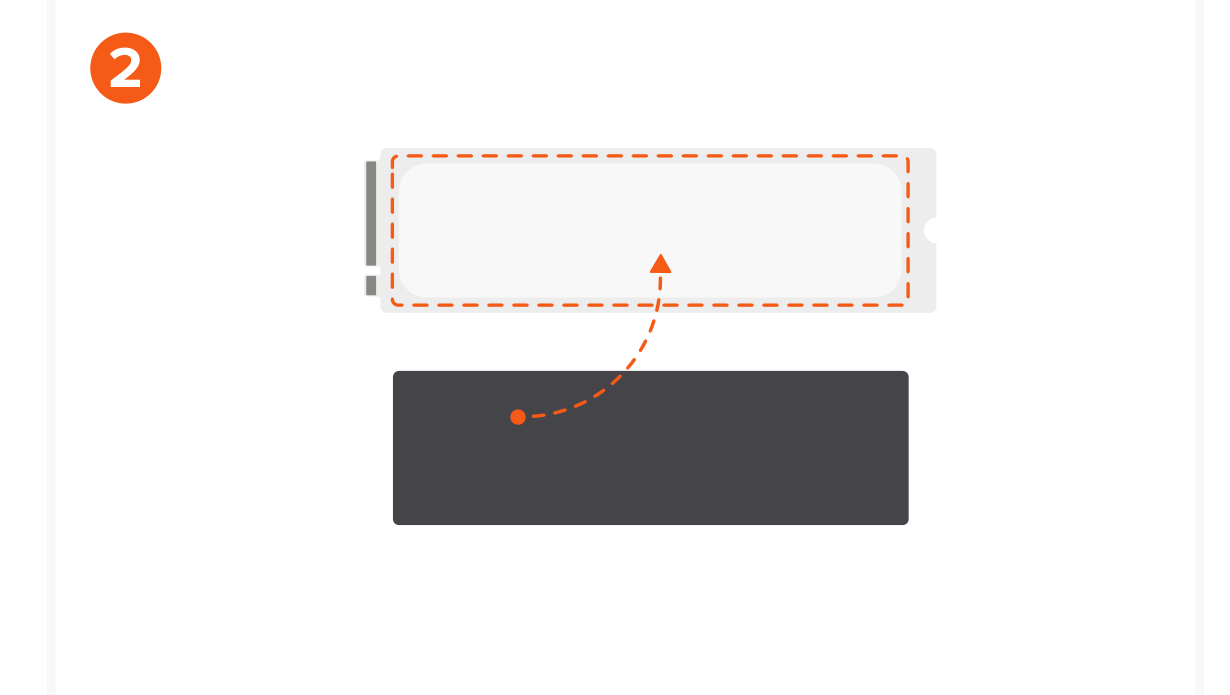

Step 2: Remove plastic from an included thermal pad. Attach the thermal pad under the SSD (not included) before installing in order to keep the enclosure cooler. Ensure thermal pad is not blocking pins.

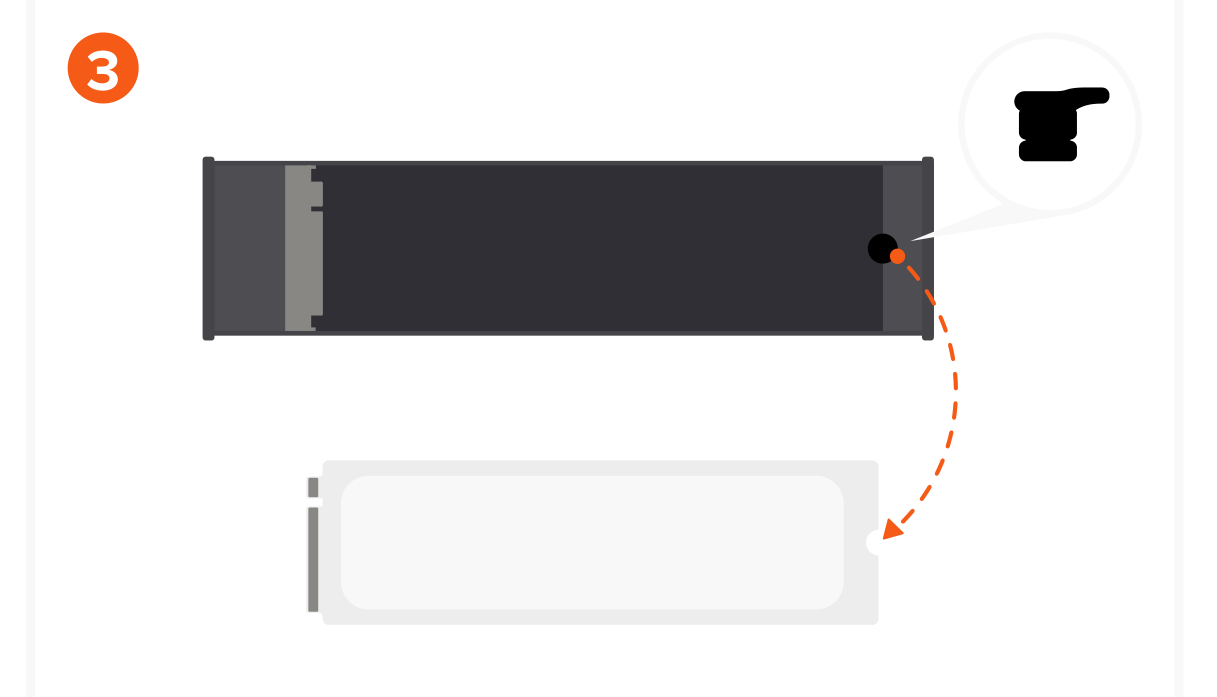

Step 3: Remove the silicone pin and position it in the notch on the opposite side of the pins.

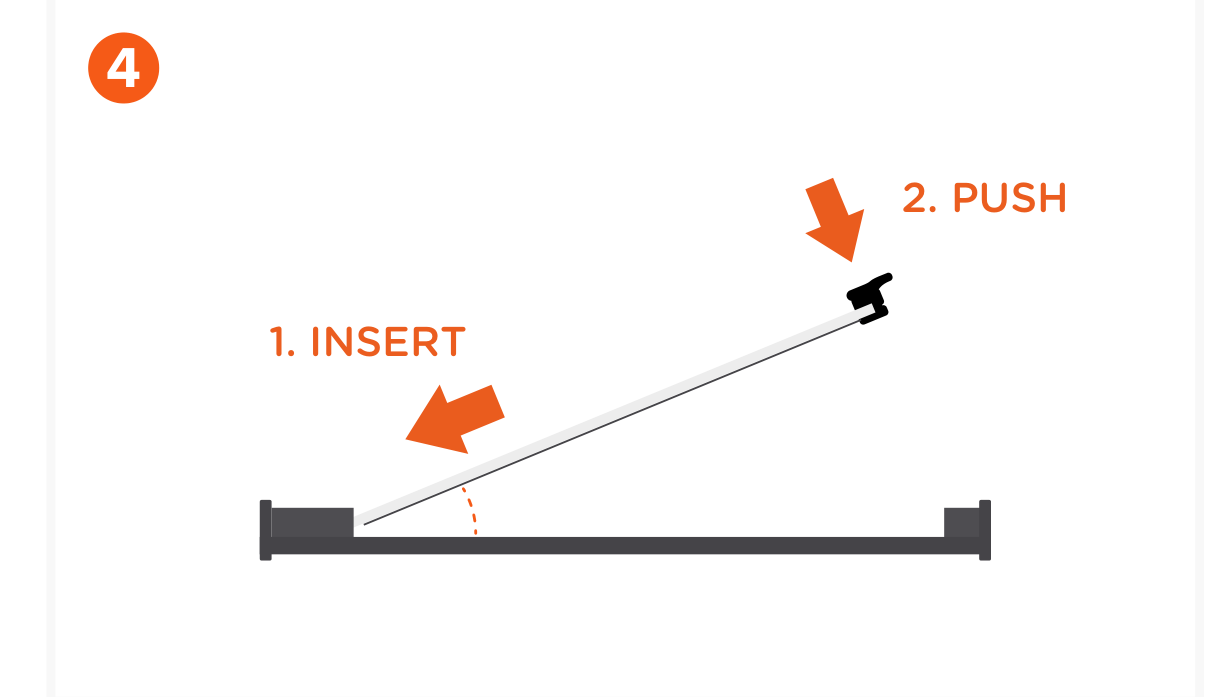

Step 4: Insert the SSD (not included) at an angle and faceup with the pins aligned and push down on the silicone pin to secure it into place.

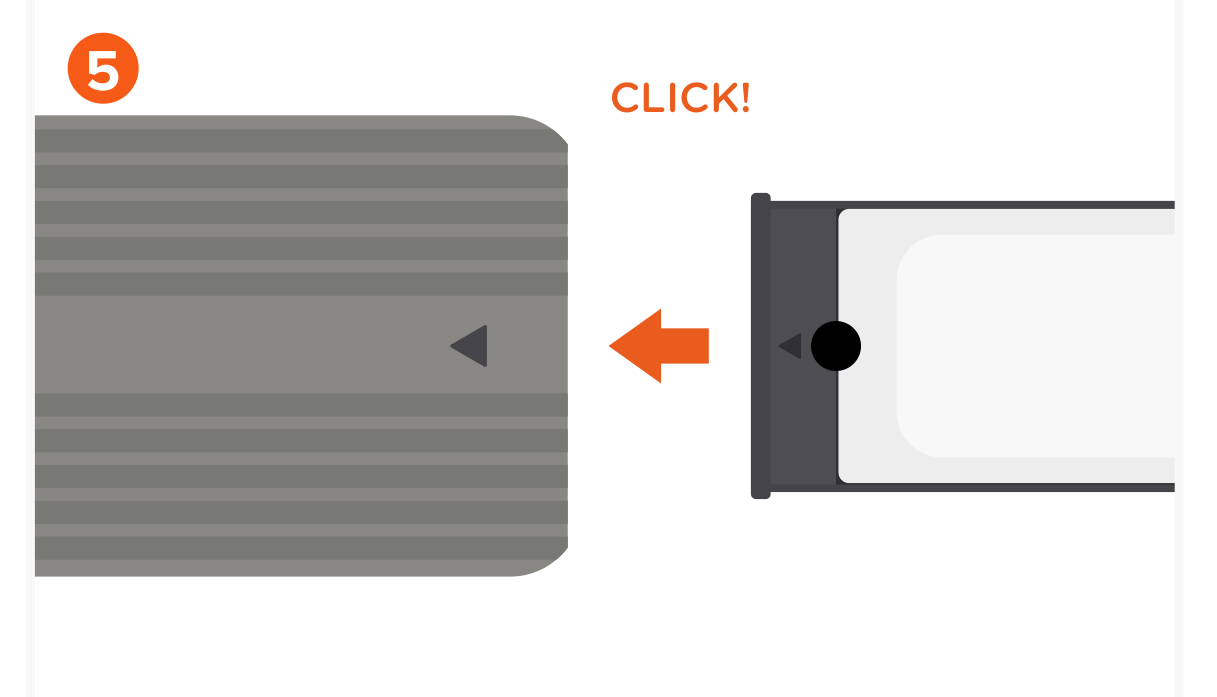

Step 5: Once the SSD is secured, align arrows, and push into the enclosure. You should hear a clicking sound once the internal enclosure is locked into place.

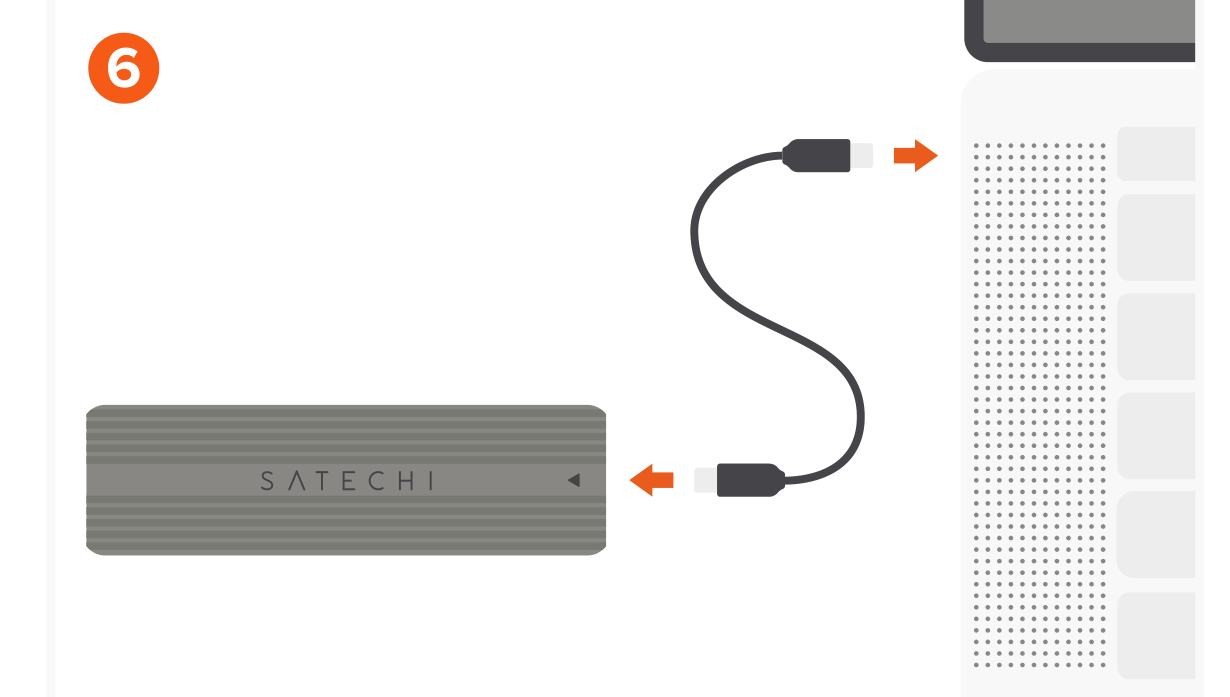

Step 6: Connect the adapter to a USB-C port on your host device with the included USB-C cable.

Note: If using with a new Solid-State Drive, please ensure the drive is properly formatted to support your host device OS.
