Instruction Manual — USB-C Multiport Pro Adapter V1 and V2

This manual covers setup and features for the Satechi USB-C Multiport Pro Adapter V1 and V2 (Model: AP-PCMPAM).

📄 Download User Manual — USB-C Multiport Pro Adapter · PDF · 1.4 MB

In the Box

USB-C Multiport Pro Adapter, User Manual.

Specifications

Model: AP-PCMPAM
Dimensions: 4.3" x 1.3" x 0.4" (10.9 x 3.3 x 1 cm)
Cable Length: 6" (15.2 cm)
Weight: 2.3 oz / 66g
Connector: USB-C

Ports & Speeds:
1× HDMI — up to 4K 30Hz
1× USB-C PD — up to 100W (no video or data)
1× USB-A 3.0 — up to 10 Gbps
1× SD card reader — up to 104 MB/s
1× Micro SD card reader — up to 104 MB/s

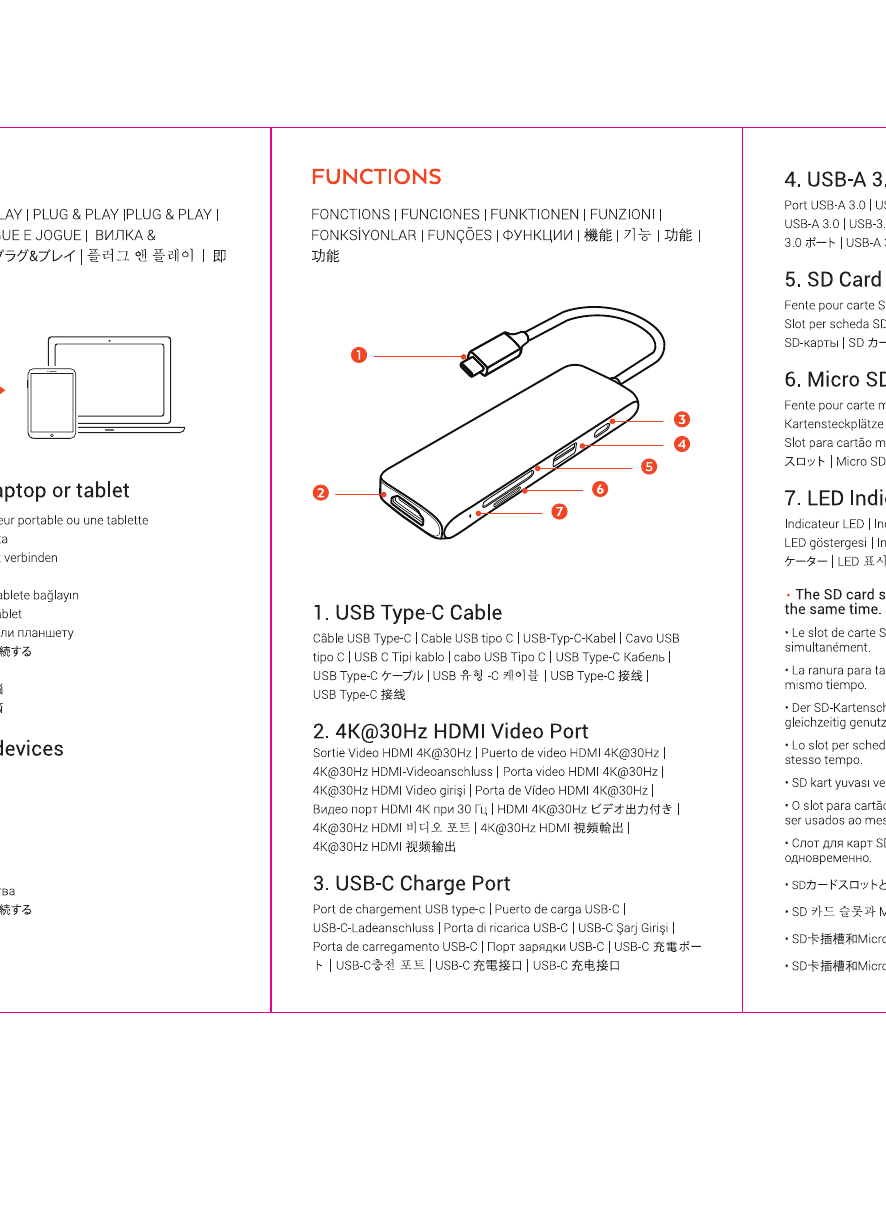

Parts Reference

1. USB Type-C Cable — Built-in USB-C cable that connects the adapter to your laptop or tablet.
2. 4K@30Hz HDMI Video Port — HDMI output supporting up to 4K at 30Hz. Requires a direct HDMI-to-HDMI cable (not included).
3. USB-C Charge Port — USB-C Power Delivery port for laptop charging up to 100W. Does not support video output or data transfer.
4. USB-A 3.0 Port — High-speed USB-A port for data transfer up to 10 Gbps.
5. SD Card Slot — SD card reader supporting speeds up to 104 MB/s.
6. Micro SD Card Slot — Micro SD card reader supporting speeds up to 104 MB/s.
7. LED Indicator — Lights up when the adapter is connected and powered.

Setup

The USB-C Multiport Pro Adapter is plug-and-play — no drivers required.

Step 1: Plug the built-in USB-C cable into a USB-C port on your laptop or tablet.
Step 2: Connect your devices to the adapter's ports.

Important Notes

USB-C charge port is for charging only: The USB-C charge port does not support video output or data transfer. It is for power delivery only.

Direct HDMI cable required: To transmit video via the HDMI port, use a direct HDMI-to-HDMI cable (not included). Adapters or converters may not work reliably.

SD and Micro SD cannot be used simultaneously: The SD card slot and Micro SD card slot cannot be used at the same time. Insert only one card at a time.

USB device current limit: Connected USB devices should not exceed an input current of 900mA.

Not compatible with Apple USB SuperDrive: The adapter is not compatible with the Apple USB SuperDrive or other CD/DVD drives due to power requirements.

Frequently Asked Questions

What is the maximum HDMI resolution?
The HDMI port supports up to 4K at 30Hz.

Can I use the SD and Micro SD slots at the same time?
No. The SD and Micro SD card slots cannot be used simultaneously. Use one at a time.

Can I charge my laptop through this adapter?
Yes. Connect a USB-C PD charger (up to 100W) to the USB-C charge port. Note that this port does not support data transfer or video output.

Does this work with iPad?
Yes. The adapter is compatible with Mac laptops and tablets with a USB-C port.

Safety Instructions

Warning: Fire, electric shock, or damage could occur if the following instructions are not obeyed.

1. Do not expose to extreme heat or direct sunlight for extended periods.
2. Do not drop or subject the adapter to strong impacts.
3. Keep away from liquids and moisture.
4. Do not exceed 900mA input current on USB ports.

Need Help?

Contact Satechi Support at support.satechi.com or email support@satechi.com.
Phone: +1 858 268 1800 | Website: www.satechi.com
