Instruction Manual β USB-C To HDMI 2.1 8K Cable
This manual covers setup and features for the Satechi USB-C To HDMI 2.1 8K Cable (Model: ST-YH8KCM).
π Download User Manual β USB-C To HDMI 2.1 8K Cable Β· PDF Β· 2.1 MB
In the Box
USB-C to HDMI 2.1 8K Cable, User Manual.
Specifications
Model: ST-YH8KCM
Cable Length: 6.43 ft / 77.12 in (~2 m)
Weight: 108.9 g / 3.84 oz
Connector Type: USB-C to HDMI 2.1
Supported Resolutions: 8K/60Hz (Windows) Β· 4K/120Hz Β· 2K/240Hz Β· 1080p/500Hz
Mac Maximum: 4K/60Hz (8K output not supported on macOS)
HDR: Dynamic HDR10+
Content Protection: HDCP 1.4 & HDCP 2.3

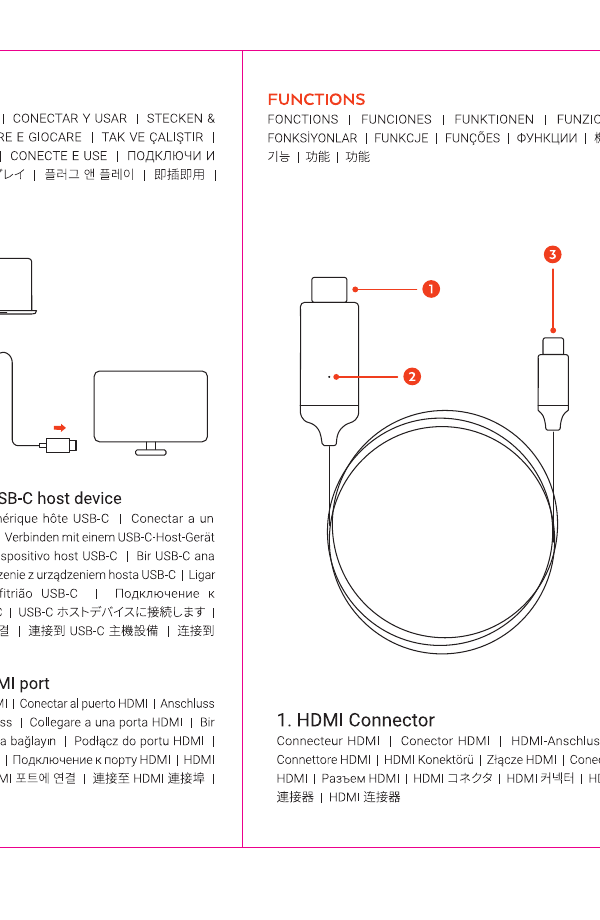

Parts Reference
1. HDMI Connector β HDMI 2.1 connector at the display end of the cable. Connect to the HDMI port on your external monitor or TV. Supports up to 8K/60Hz on compatible Windows displays and up to 4K/60Hz on macOS.
2. LED Indicator β Illuminates when the cable is connected and active, confirming a live display connection.
3. USB-C Connector β USB-C connector at the device end. Plug into the USB-C or Thunderbolt port on your laptop or device. The host USB-C port must support DisplayPort Alt Mode (DP Alt Mode).
Setup
Step 1: Connect the USB-C end (Port 3) to the USB-C or Thunderbolt port on your computer. Confirm your computer's USB-C port supports DisplayPort Alt Mode.
Step 2: Connect the HDMI end (Port 1) to the HDMI port on your external monitor or TV.
Step 3: On your display, switch the input source to HDMI and begin streaming. The LED indicator (Port 2) will illuminate to confirm an active connection.
Important Notes
Host USB-C port must support DP Alt Mode: This cable requires DisplayPort Alternate Mode (DP Alt Mode) on the host USB-C port. Most MacBooks, iPad Pros, and modern Windows laptops with USB-C or Thunderbolt ports support this. Check your device specifications to confirm.
8K output requires Windows and compatible hardware: 8K/60Hz output is supported on Windows with an 8K-capable GPU and 8K-capable display. macOS does not support 8K output via this cable β Mac devices are limited to 4K/60Hz.
High-refresh-rate support for gaming: This cable supports 4K/120Hz, 2K/240Hz, and 1080p/500Hz for high-refresh-rate gaming on compatible Windows systems and displays.
Some monitors require settings changes for 8K: When outputting 8K resolution, some monitors may require you to manually adjust display settings on the monitor or in your operating system's display preferences.
Frequently Asked Questions
What resolution can I get on my Mac?
Mac computers are limited to 4K/60Hz output via this cable. 8K output is not supported on macOS regardless of display capability.
How do I achieve 8K output?
Your computer must run Windows and have a USB-C port with DP Alt Mode, an 8K-capable GPU, and be connected to an 8K-capable HDMI 2.1 display. All components must support 8K.
Does my USB-C port support DP Alt Mode?
Most USB-C and Thunderbolt ports on MacBooks, iPad Pros, and modern Windows laptops support DP Alt Mode. Check your device's technical specifications to confirm.
Does this cable support HDR?
Yes. This cable supports Dynamic HDR10+ for enhanced contrast and color on compatible displays, and HDCP 1.4 and 2.3 for protected content streaming.
Can I use this for high-refresh-rate gaming?
Yes. This cable supports 4K/120Hz, 2K/240Hz, and 1080p/500Hz on compatible Windows systems and gaming monitors.
Safety Instructions
Warning: Fire, electric shock, or damage could occur if the following instructions are not obeyed.
1. Do not bend, kink, or pinch the cable sharply.
2. Keep away from liquids and moisture.
3. Do not use if the cable or connectors are damaged.
4. Do not force connectors into ports β ensure correct alignment before inserting.
Need Help?
Contact Satechi Support at support.satechi.com or email support@satechi.com.
Phone: +1 858 268 1800 | Website: www.satechi.com
