Instruction Manual — OntheGo™ Qi2 3-in-1 Wireless Charger

This manual covers setup and features for the Satechi OntheGo™ Qi2 3-in-1 Wireless Charger (Models: ST-QTG31K / ST-QTG31W / ST-QTG31R).

📄 Download User Manual — OntheGo™ Qi2 3-in-1 Wireless Charger · PDF · 2.7 MB

In the Box

OntheGo™ Qi2 3-in-1 Wireless Charger, USB-C Cable, User Manual. (36W+ USB-C power adapter sold separately.)

Specifications

Models: ST-QTG31K (Black) / ST-QTG31W (Sand) / ST-QTG31R (Desert Rose)
Dimensions (unfolded): 9.55" × 2.66" × 0.44" (24.25 × 6.75 × 1.13 cm)
Weight: 5.12 oz / 145.3 g
Cable Length: 39.3 in / 100 cm
Connector: USB-C
Minimum Input Power Required: 36W (USB-C power adapter sold separately)

Charging Speeds:
Qi2 Magnetic Wireless Charger (Phone) — up to 15W (Qi2 & MagSafe compatible phones only)
Apple Watch Charger — fast charging up to 5W (Series 7, 8, 9, 10); standard 5W (Ultra, Ultra 2)
AirPods Wireless Charger — up to 5W

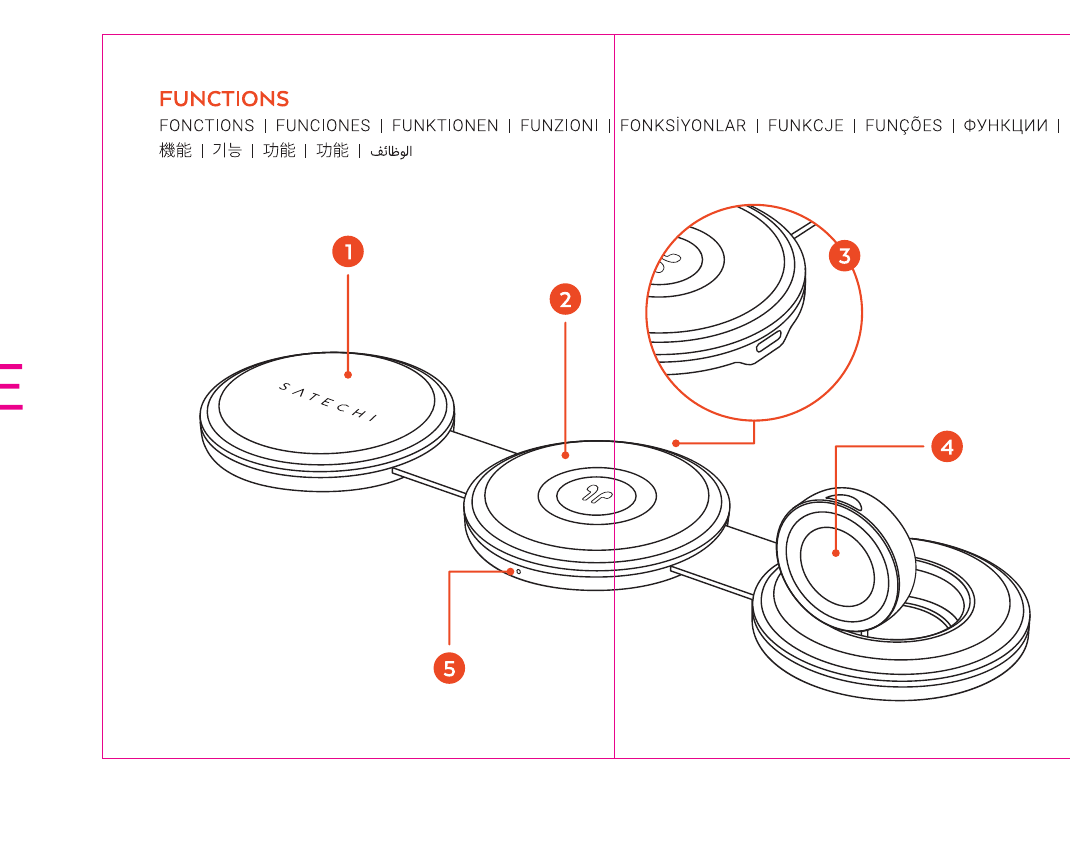

Parts Reference

1. Qi2 Magnetic Wireless Charger (15W Max) — The large left charging disc. Charges Qi2 and MagSafe compatible iPhones at up to 15W. Built-in magnets align automatically with MagSafe-compatible phones. Non-MagSafe phones require a Qi2/MagSafe compatible case or magnetic attachment (sold separately).
2. Wireless Charger for AirPods (5W Max) — The center charging disc. Place your AirPods (with wireless charging case) here to charge at up to 5W. The LED indicator illuminates when the AirPods pad is in use.
3. USB-C Port — USB-C power input located at the rear of the charger. Connect the included USB-C cable here, then plug the other end into a 36W+ USB-C power adapter (sold separately).
4. Foldable Apple Watch Charger (Fast Charging*) — The Apple Watch magnetic charging puck on the right side. Folds flat when not in use. Flip it upward to enable Apple Watch Nightstand Mode. Fast charging (5W) is supported on Apple Watch Series 7, 8, 9, and 10. Apple Watch Ultra and Ultra 2 charge at standard 5W.
5. LED Indicator — Located at the front of the charger. Briefly turns on, turns off, then flashes once when the charger is connected to power. Illuminates when the AirPods pad (Port 2) is in use. Blinks to alert when a foreign object is detected on the Qi2 or AirPods charging surfaces.

Setup

The OntheGo™ Qi2 3-in-1 Wireless Charger is plug-and-play — no drivers required.

Step 1: Unfold the charger to fan out all three charging pads.
Step 2: Connect the included USB-C cable to the USB-C port (Port 3) at the rear of the charger.
Step 3: Connect the other end of the USB-C cable to a 36W+ USB-C power adapter (sold separately) and plug into a wall outlet. The LED indicator will briefly turn on, turn off, then flash once to confirm power is connected.
Step 4: Place your Qi2 or MagSafe-compatible iPhone on the left Qi2 charging disc (Port 1). The magnets will snap it into alignment and wireless charging begins automatically.
Step 5: Place your AirPods (with wireless charging case) on the center AirPods disc (Port 2).
Step 6: Place your Apple Watch on the Apple Watch charger puck (Port 4). Flip the puck upward to enable Nightstand Mode.

Important Notes

Power adapter not included — 36W minimum required: The USB-C power adapter is not included in the box and must be purchased separately. A minimum of 36W is required for optimal charging performance across all three pads.

15W charging requires a Qi2 or MagSafe compatible phone: Only Qi2 and MagSafe-compatible iPhones (iPhone 12 and later) will charge at up to 15W on the Qi2 disc. Standard Qi phones will charge at lower speeds. Non-MagSafe phones require a Qi2/MagSafe compatible case or magnetic attachment (not included) to use the magnetic alignment feature.

Apple Watch fast charging (5W) is only supported on Series 7 and later: Fast charging is supported on Apple Watch Series 7, 8, 9, and 10. Apple Watch Ultra and Ultra 2 charge at standard 5W. Earlier Apple Watch models charge at standard speed.

LED will blink if a foreign object is detected: If the LED blinks (Foreign Object Detection), remove any metallic or non-compatible objects from the Qi2 or AirPods charging surfaces and replace with a compatible device.

Keep away from water and other liquids.

Frequently Asked Questions

What is the maximum wireless charging speed for my iPhone?
Qi2 and MagSafe compatible iPhones charge at up to 15W on the Qi2 disc (Port 1). Standard Qi phones charge at lower speeds.

Which Apple Watch models support fast charging?
Fast charging at 5W is supported on Apple Watch Series 7, 8, 9, and 10. Apple Watch Ultra and Ultra 2 charge at 5W (standard speed). Earlier models charge at standard speed.

Can I charge all three devices at the same time?
Yes. All three charging pads can be used simultaneously when connected to a 36W+ USB-C power adapter.

What power adapter do I need?
A USB-C power adapter providing at least 36W is required. The power adapter is sold separately and not included in the box.

My iPhone doesn't have MagSafe — can I still use this charger?
Yes. Any Qi-compatible phone will charge wirelessly on the Qi2 disc, but at a lower wattage. To use the magnetic alignment feature, you will need a Qi2/MagSafe compatible case or a magnetic attachment (sold separately).

Does this work with non-Apple phones?
Yes. Any Qi2-compatible Android phone will charge at up to 15W on the left disc. Standard Qi phones will charge at reduced speeds without magnetic alignment.

Safety Instructions

Warning: Fire, electric shock, or damage could occur if the following instructions are not obeyed.

1. Keep away from water, liquids, and moisture.
2. Do not expose to extreme heat or direct sunlight for extended periods.
3. Do not drop or subject to strong impacts.
4. Use only with a compatible 36W+ USB-C power adapter.
5. Remove metallic objects from charging surfaces before use.

Need Help?

Contact Satechi Support at support.satechi.com or email support@satechi.com.
Phone: +1 858 268 1800 | Website: www.satechi.com
